Blow Molding System

Automatic PET stretch blow-molding equipment for producing bottles from preforms before filling.

PET bottles
Preform heating
Stretch blow molding

Compare specifications Request a proposal

Production footage

See the equipment in motion.

Review the production sequence and equipment details before discussing your own line.

Discuss your project

Published technical data

Compare the configuration.

Specifications are from the published product record. Confirm the selected model, output and utilities for your project.

Technical specifications

Series/Model	0.75L series	PM-6	PM-6E	PM-9E	PMG-7	PMG-9
Technical parameter	Maximum bottle volume	0.75L	0.75L	0.75L	0.75L	0.75L
	Maximum bottle diameter	Φ68	Φ68	Φ68	Φ72	Φ72
	Maximum bottle height	245mm	245mm	240mm	250mm	230mm
	Heating unit	4	4	6	6	8
	Design output rate(bph)	6600bph	9600bph	12000bph	14000bph	18000bph
	Number of molds	6	6	9	7	9
	Service power(kw/h)	24-36	30-50	40-60	30-60	45-60
	Installation power(kw)	70	75	110	110	128
	HP air consumption(m3/min)	4	6	8	7	10
	LP air consumption(m3/min)	3	2	2	/	/
	Weight (T)	6.5	7.5	9.5	8	10
	Dimension(M)	4.12.32.3	4.52.42.3	5.62.62.4	7.02.22.9	5.72.22.7

Package & product fit

Containers & handling.

Published container examples and process guidance for the selected machine.

Application notes

PET bottles
Preform heating
Stretch blow molding

Equipment details

Follow the machine through each stage.

Machine layout, component photographs and the corresponding process notes from the product record.

Product overview

Blow Mold Machine System For Your Line From A-Z

Blow molding system is characterized by its reasonable structure, lower power consumption, good stability, flexible blowing process and simple operation, especially on the production of drinking water, carbonated beverage and other common PET bottles, as well as heat-resistant bottle, mid-temperature PET bottle, sterile cold PET bottle.

1.Accurate preform-divided

Servo driven equidistance preform-divided, safe, fast and high precision.

2.Servo mold-clamping

Servo driven mold clamp, bottom mold and mold clamping linkage, High-pressure mold-locked guarantee the bottle bloiwng speed and quality

3.Stable main transmission

4. Safetly mold framework structure

Adopts drawer type structure, mold change and installation are more safe and time-saving with special auxiliary tools.

5.Intelligent operation system

Human-machine interface control system, high automation, easy opeation and safe.

6.Standardized spare parts

High-quality standarized spare parts guarantee the reliable and stability of the machines

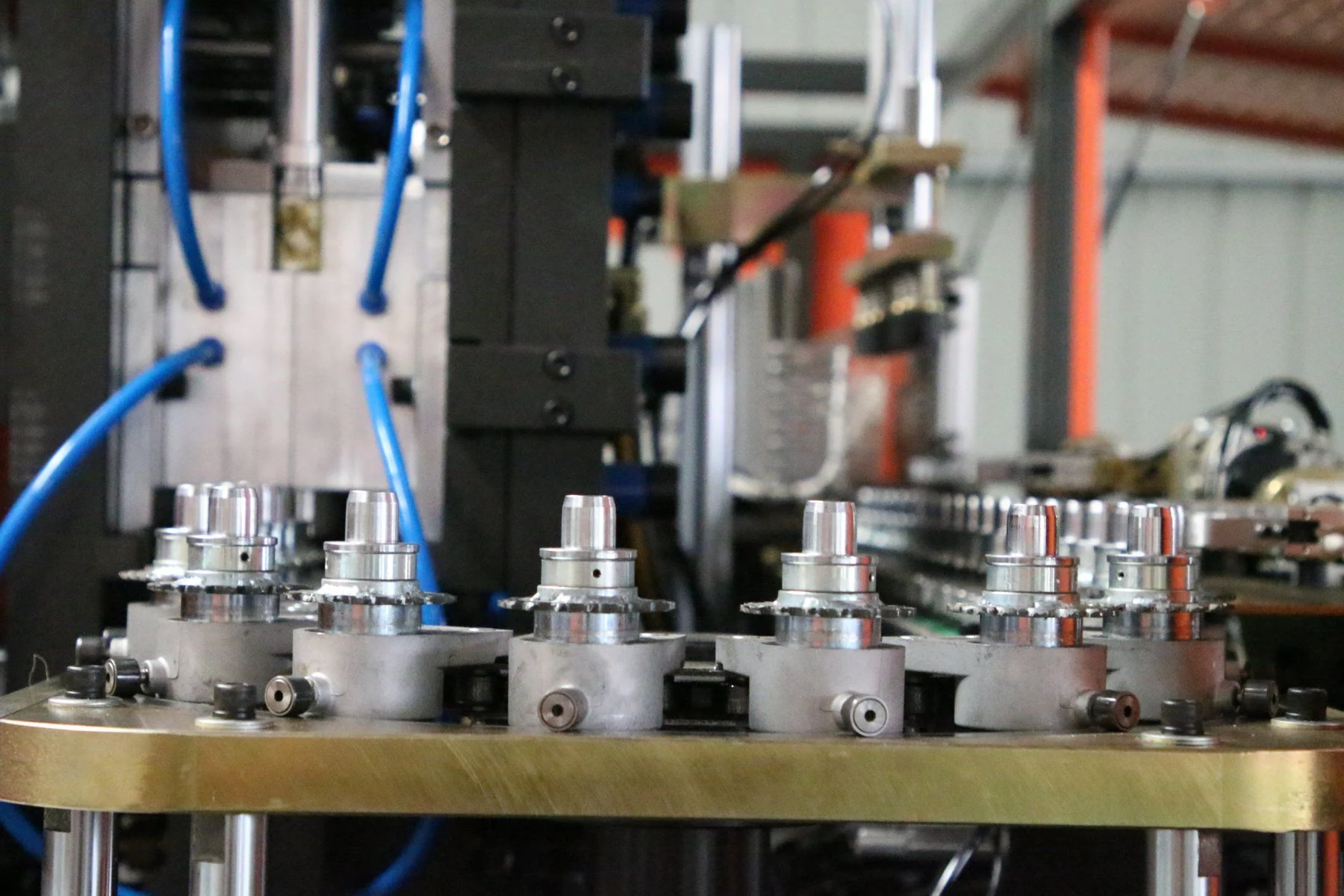

01 / MACHINE STAGE

Bottle preform holder

Made by high accurancy CNC, to guarrantee the long-term use and stable movement on the cycle of pet preform

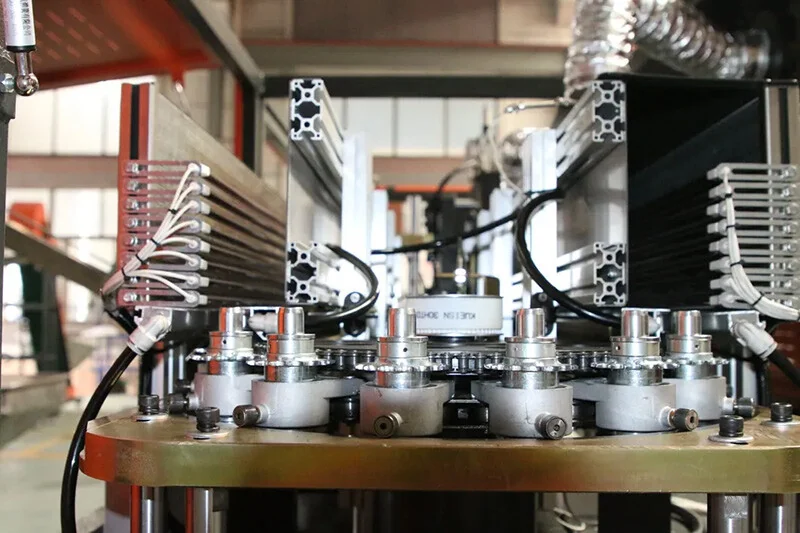

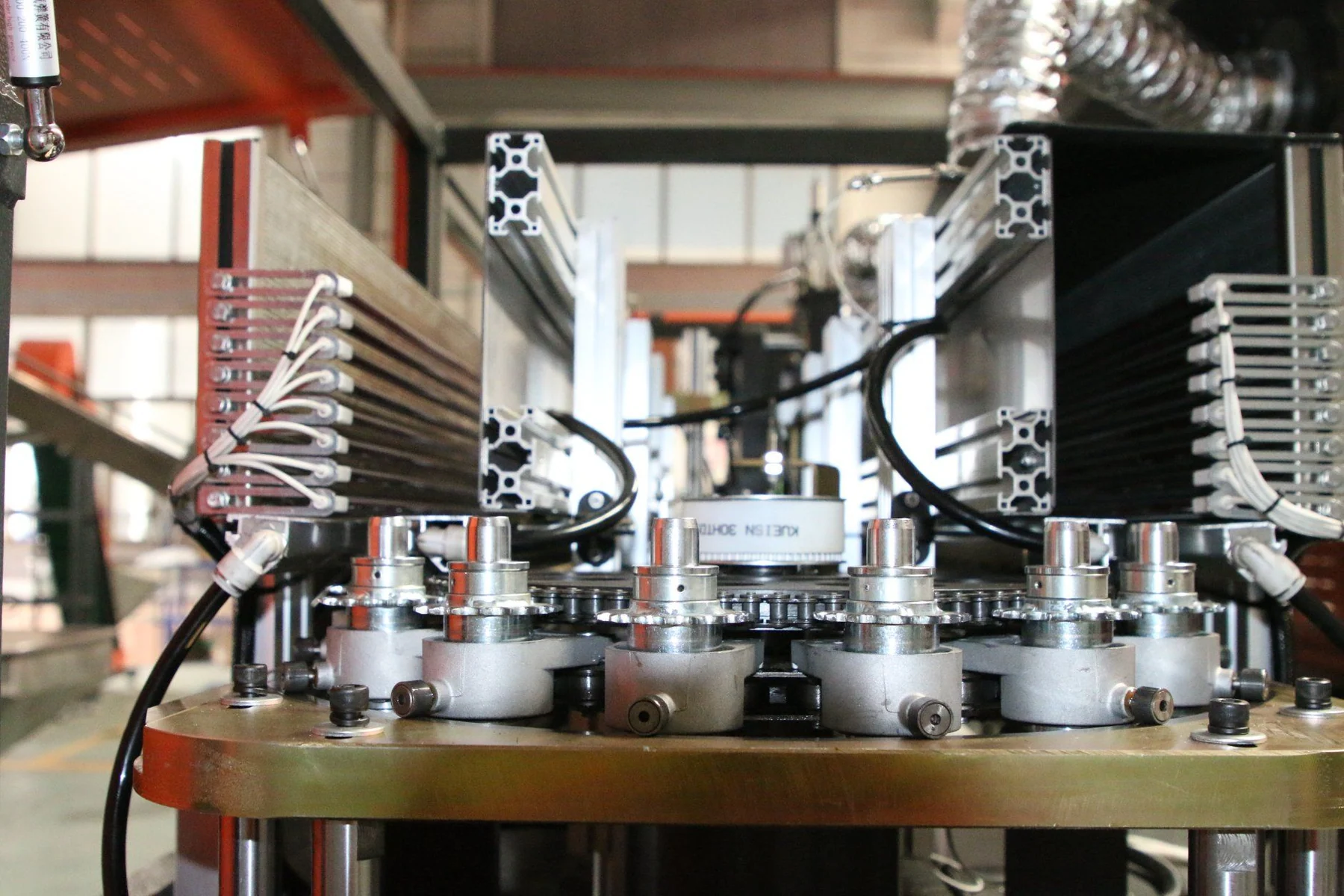

02 / MACHINE STAGE

Heating Lamp

Apply with high quality Infrared lamp, to guarrantee the long-term use and low cost to do manintenance.

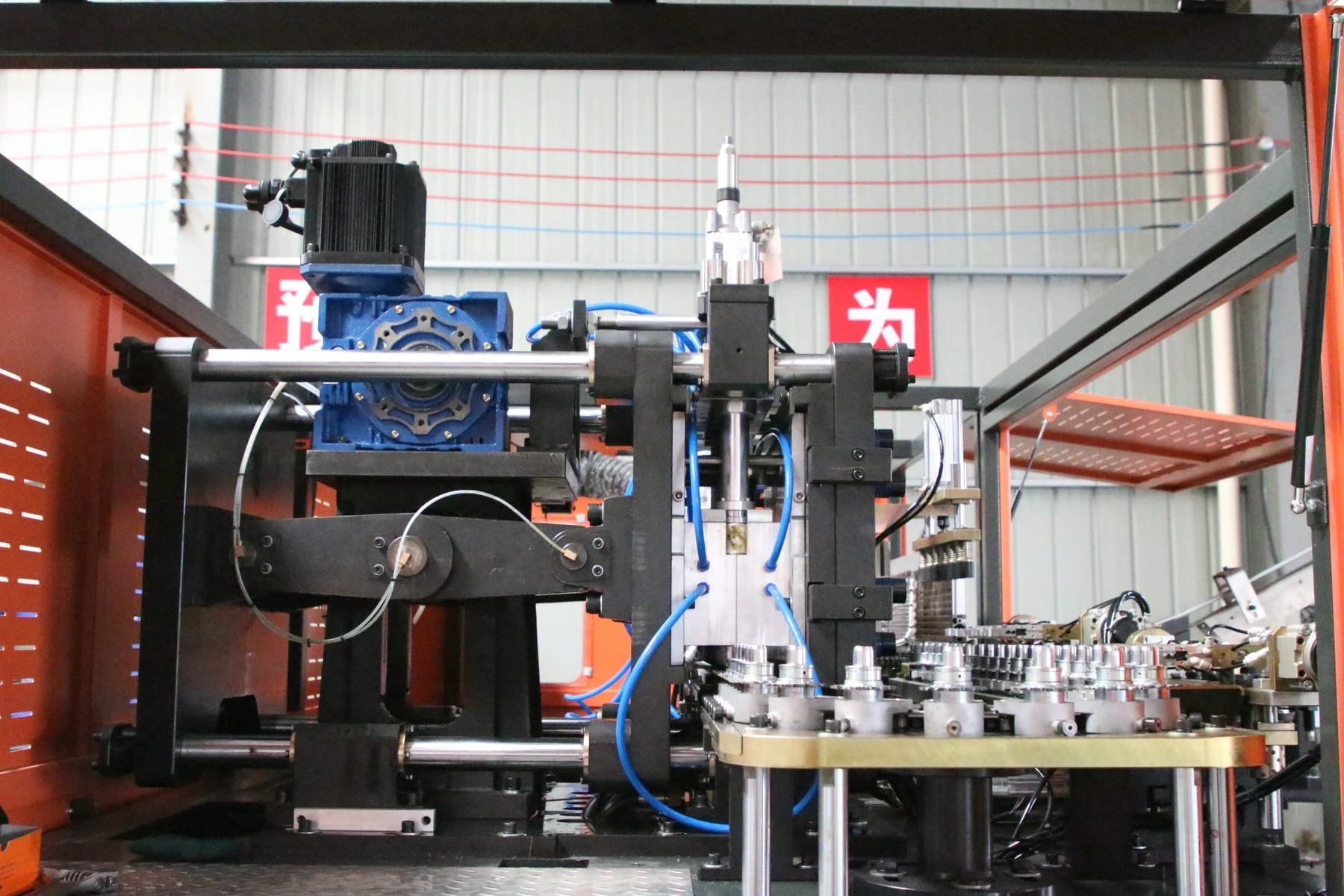

03 / MACHINE STAGE

Servo stretching mold

The servo stretching speed is fast and the position is precise. When adjusting the stretching height, only the data of the motor needs to be adjusted, without the need for manual adjustment of the machine hardware.

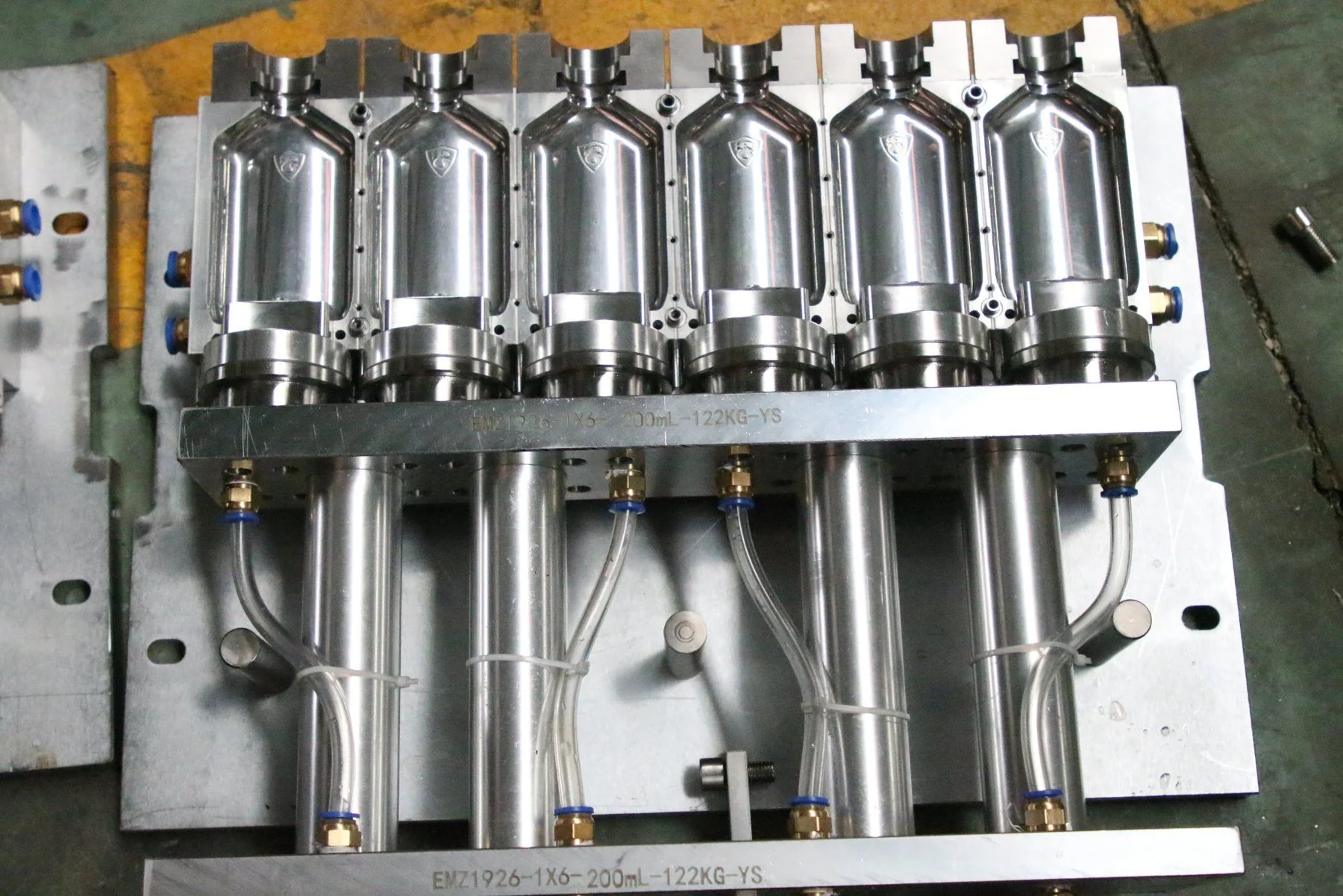

04 / MACHINE STAGE

Blowing mold

The mold is made by 7075 Aluminum material, fast cooling cycle, so the bottle is shaped beautiful,highly polished,Good transparency, light mold weight, easy to change mold.

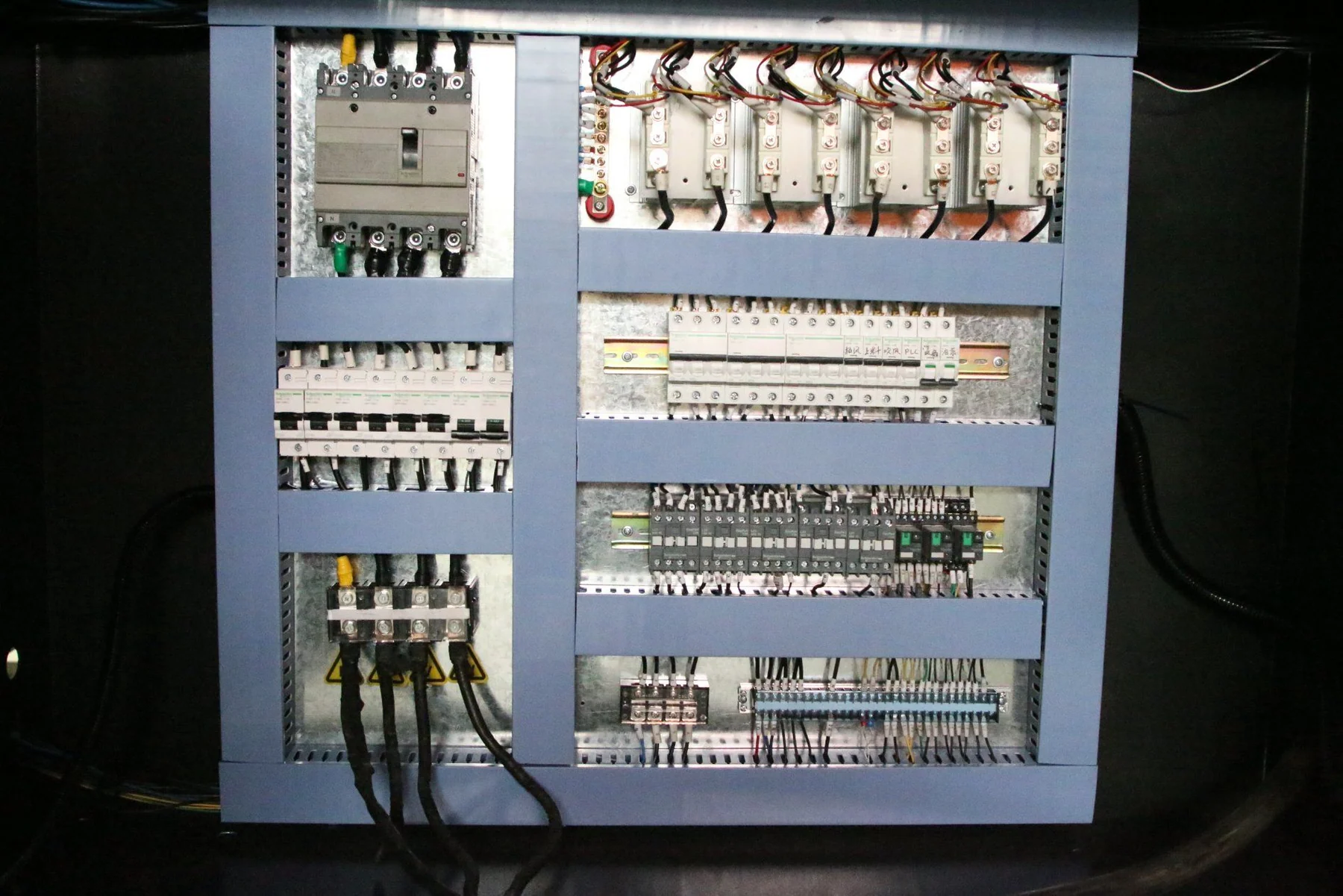

05 / MACHINE STAGE

Standardized electrical design

Professional engineer design all electrical components, and apply high quality imported and local brands, to guarrantee the stable performance of our machines.

06 / MACHINE STAGE

Independent control box

Whole movement is controled on the PLC on control box, easy to use and do adjustment the machine. impove the efficiency.
