Water Treatment System

A configurable purification route combining filtration, membrane treatment, disinfection and storage around the source-water report.

Process water
RO treatment
Filtration & disinfection

Compare specifications Request a proposal

Production footage

See the equipment in motion.

Review the production sequence and equipment details before discussing your own line.

Discuss your project

Published technical data

Compare the configuration.

Specifications are from the published product record. Confirm the selected model, output and utilities for your project.

Technical specifications

Capacity	Capacity (Ton Per hour)	General power	Size(LWH)	Weight (kg)
RO-500L/H	0.5Ton	0.75kw	15509001820mm	350kg
RO-1000L/H	1Ton	1.5kw	19809001940mm	500kg
RO-2000L/H	2Ton	2kw	48007002050mm	700kg
RO-3000L/H	3Ton	5kw	60008002200mm	800kg
RO-4000L/H	4Ton	6.5kw	70009002400mm	1000kg
RO-5000L/H	5Ton	8kw	800010002700mm	1500kg
RO-6000L/H	6Ton	12kw	850016001920mm	2000kg
RO-8000L/H	8Ton	15kw	1000018703000mm	4000kg
RO-10000L/H	10Ton	20kw	1200017003500mm	4500kg
RO-15000L/H	15Ton	25kw	1250017003500mm	6500kg
RO-20000L/H	20Ton	30kw	1300019003500mm	9000kg
RO-30000L/H	30Ton	35kw	1350023003800mm	12000kg
to be continued

Additional product data

1,PH:0-14
2,Allowed temperature:≤ 120 or ≤ 100
3,expanding rate:%(Na → H )≤ 10
4,resin height :m 1.0-3.0
5,generation liquid thickness:% NaCl:4-10 HCl:2-5 H2SO4:1-2;2-4
6,cosumption:kg/m3 NaCl 75-150
7,Speed:m/h 5-8
8,Generation time:minute:30-60
9,washing flowing capacity:m/h:10-20
10,washing time:minute: about 30
11,running speed:m/h:10-40
12,Working heat exchanger:mmol/l() NACL≥ 800

Package & product fit

Containers & handling.

Published container examples and process guidance for the selected machine.

Application notes

Process water
RO treatment
Filtration & disinfection

Equipment details

Follow the machine through each stage.

Machine layout, component photographs and the corresponding process notes from the product record.

Product overview

Pure Water Treatment System from A-Z

Planet Machinery's water treatment system is used in Mineral water and other bottled water, water for food and beverage production.

Planet Machinery is a water treatment equipment manufacturers and supply from China. Planet Machinery provide water treatment equipment for manufacturers of mineral water, packaged drinking water, food and beverage process water.

Our water treatment systems feature high quality fabrication and components.Utilizing new and improved technologies increases efficiency and output of the systems, while reducing environmental impact.

1.Provide a complete set of pure water equipment that meets the specified output and water quality requirements, and undertake the design, supply, installation, and debugging of the overall system until it runs normally;

2.The main components of the equipment, such as water pumps and membrane elements, adopt well-known brands, and the quality is guaranteed;

3.The system has strong scalability. If the water quality requirements are further improved in the later period, the existing equipment can be expanded at any time to further improve the water quality;

4.The process parameters, equipment selection, and operation control of the entire system must ensure the safe, stable and long-term efficient operation of the entire system;

Complete solution

In Planet Machinery you can find complete solution for your ideal liquid packaging production, not only various packaging machinery but also production line building advisory service.

Rich industry experience

Our experienced engineer support you from bottle design, line speed selection, line setting up, installation and commssioning, onsite training, and after sales service.

Affordable price

We know it's not easy to open a new business, so we try our best to provide a quality products and service with a cost-effective price.

Fast delivery and installation

We design our machine and line in a simple and reliable way so that it's easy to install and save time on the production. Usually machine production time can up to 30days and production line up to 60days.

01 / MACHINE STAGE

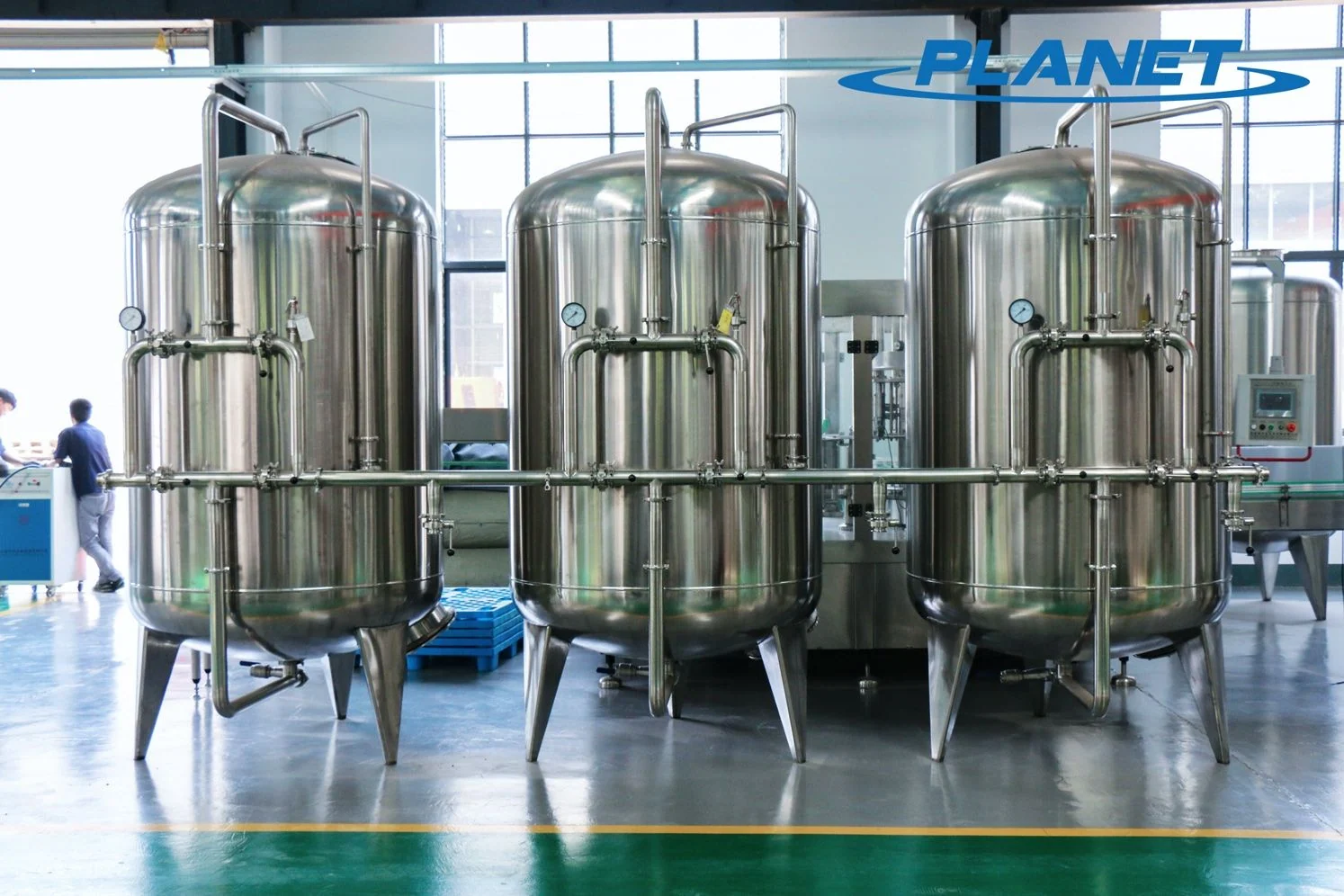

2. Silica Sand filter

When the water through the machine, it machine will stop suspend substance through the good quality silica sand. and also protect the following machines and also clean the water this machine can achieve the back washing itself through the manual valve device, and can prolong the life of machine also.

02 / MACHINE STAGE

3.Active carbon filter

This equipment can clear away heterochrosis and off-favor from the water and can remove heavy metal such as mercury,lead,cadmium,zink iron,maganese and hromium and hydrogenate, sulphide and so on. It also could remove hydride, sulfuret and so on macromolecular compound ,then make the water asepsis and sans taste. we could use manual working valve to finish reverse washing.

03 / MACHINE STAGE

4. Sodium ion exchanger

This machine we also called water softner , that Soften theory is Exchanging Na++ of resin itself instead of Ca++Mg++ of water resource with Ion to make water resource soften and become soft water.It has rebirth function.

04 / MACHINE STAGE

5. Precision filter

This machine is made of stainless steel as a small tank which contains precision filter membrane, it only allows un-treated water go through the membrane, and does not allow any liquid go through another part, so it can filter the un-treated water.

05 / MACHINE STAGE

6.regenerator

Regenerate the sodium ion.

06 / MACHINE STAGE

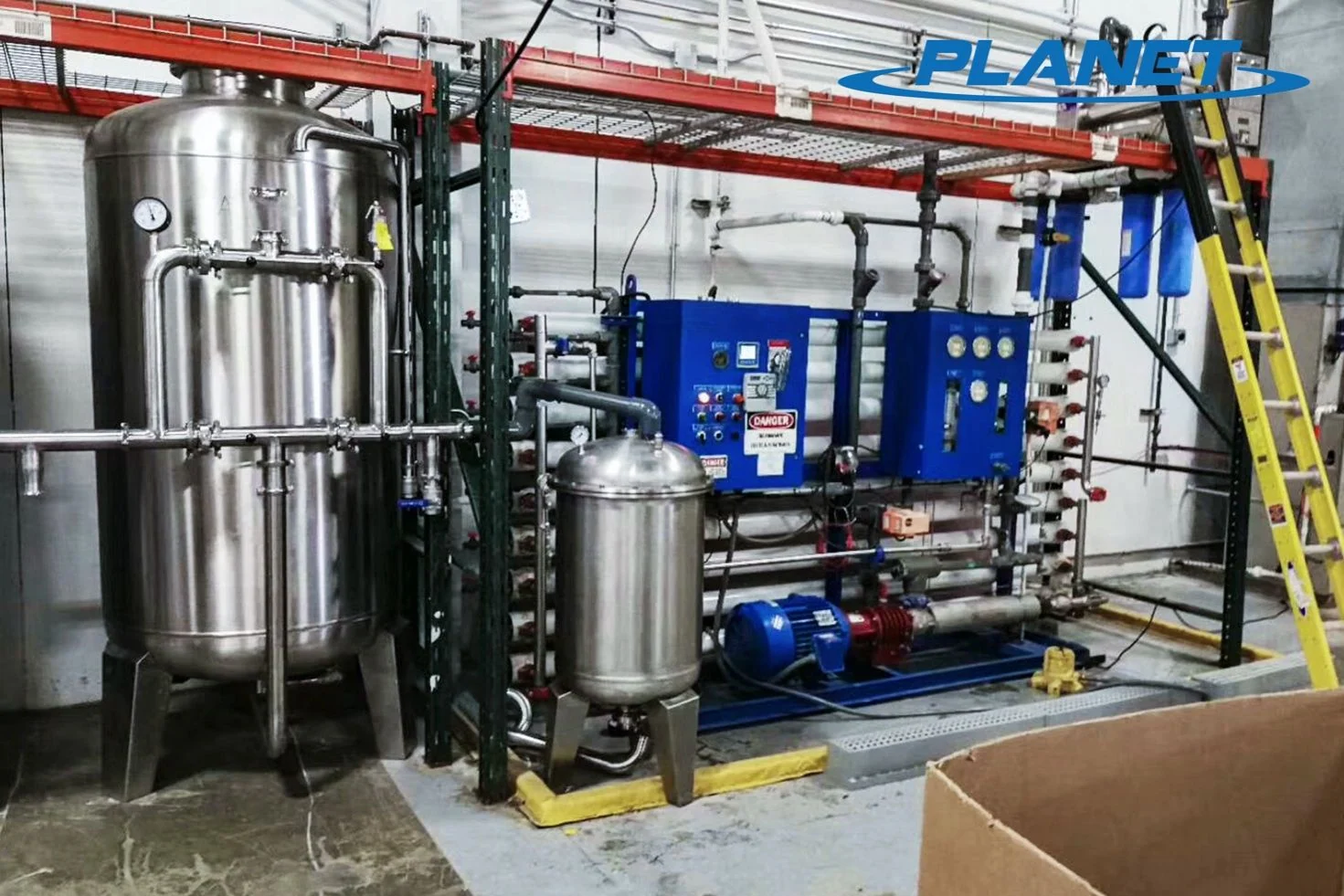

7. Reverse Osmosis (single stage)

The device's key part is reverse osmosis membranes that is from the America, it has a good performance to eliminate salts and the high pressure pump is from a high quality pump producer in China, it's easy to handle for its simple structure. The source water, in the case that the conductivity is less than 300us/CM, can reach the national standards totally after treatment by this device, it's the most ideal equipment for water treatment.

07 / MACHINE STAGE

8. UV sterilizer machine

The products adopt a high-intensity, long-lived UV germicidal lamp, the device is reasonable, compact, and adopts the structure of secondary disinfection, so health indicators completely according to the state standard.

08 / MACHINE STAGE

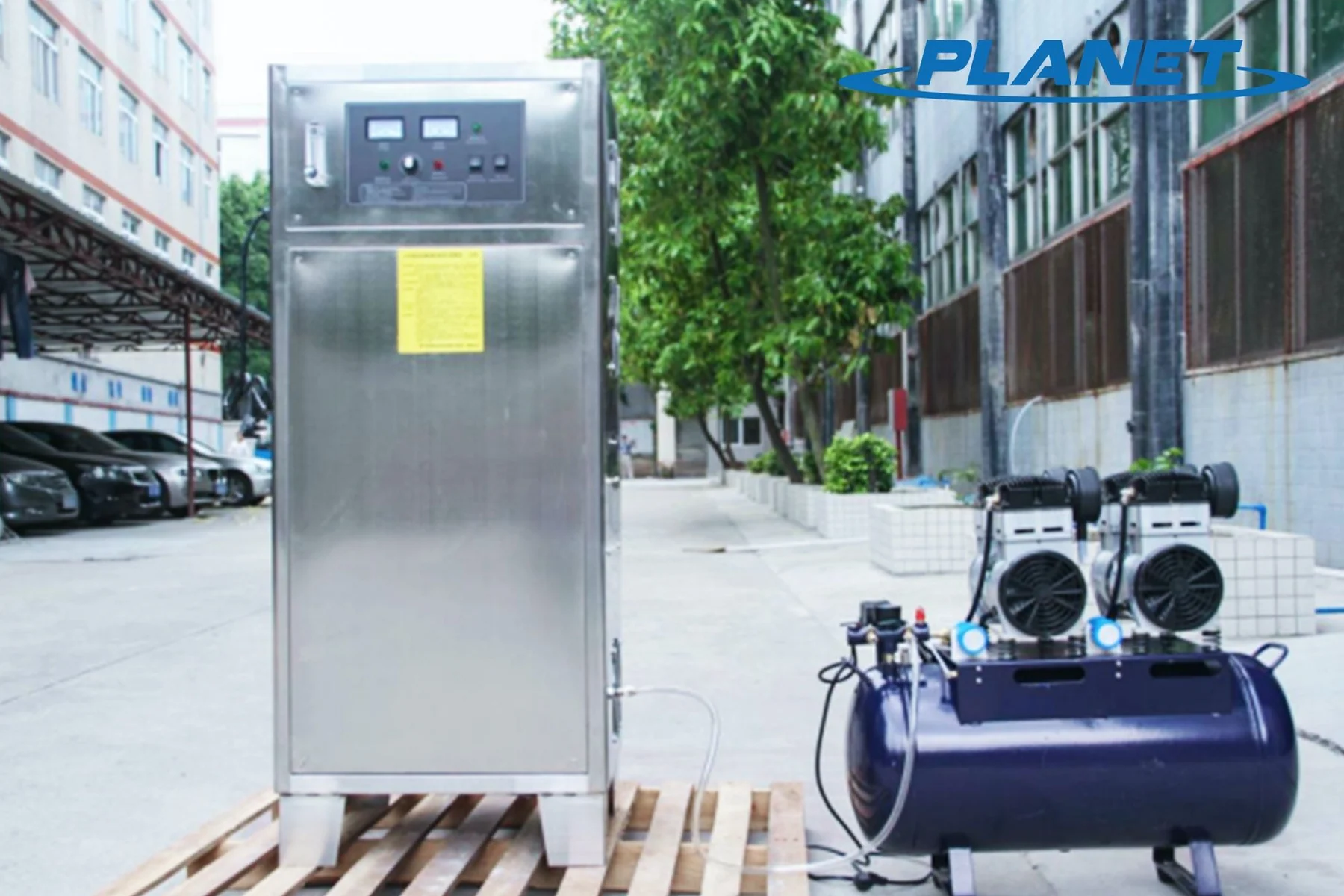

9.Ozone generator

Kill the bacteria inside the water.

09 / MACHINE STAGE

10. Finished water tank

Storage the pure water.

10 / MACHINE STAGE

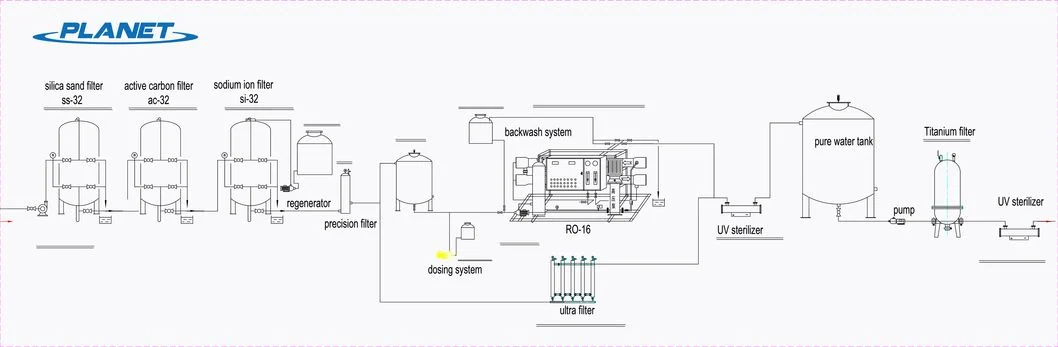

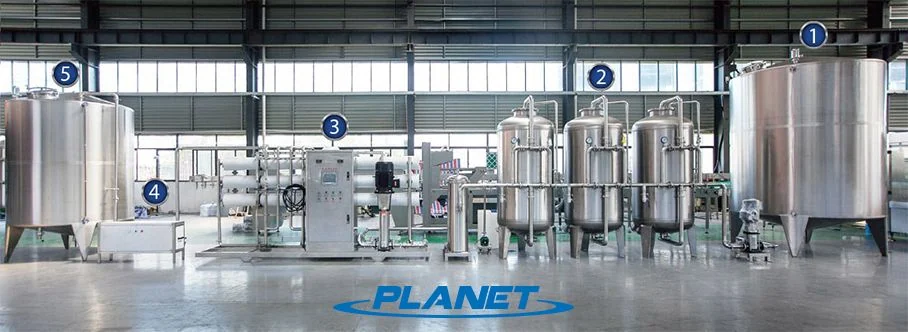

Raw water tank + Raw water pump

Silica sand filter + Active carbon filter + Sodium ion + Exchanger + Precision filter + Security filter
