Shrink-Sleeve Labeling Machine

Sleeve application and shrinking equipment for full-body, partial-body and tamper-evident labels.

  • Shrink sleeves
  • Bottle & can formats
  • Steam or hot-air tunnel
Compare specifications Request a proposal
Shrink-Sleeve Labeling Machine — full machine

Production footage

See the equipment in motion.

Review the production sequence and equipment details before discussing your own line.

Discuss your project

Published technical data

Compare the configuration.

Specifications are from the published product record. Confirm the selected model, output and utilities for your project.

01

Technical specifications

ModelPM-150PM-250PM-250DPM-300PM-400
Capacity(On the baselabel length:500ml)150 bottles/min250 bottles/min250 bottles/min300 bottles/min400bottles/min
Label heights30~250mm30~250mm30~250mm30~250mm30~250mm
Bottle diameter28~125mm28~125mm28~125mm28~125mm28~125mm
Thickness of label0.03~0.13 mm0.03~0.13 mm0.03~0.13 mm0.03~0.13 mm0.03~0.13 mm
Label materialPVC/ PETPVC/ PETPVC/ PETPVC/ PETPVC/ PET
Machine weight550KG600KG700KG800KG950KG
Overall machine size(mm)2100x850x21002100x1100x21003200x1200x20702600x1100x22002600x1100x2200

Package & product fit

Containers & handling.

Published container examples and process guidance for the selected machine.

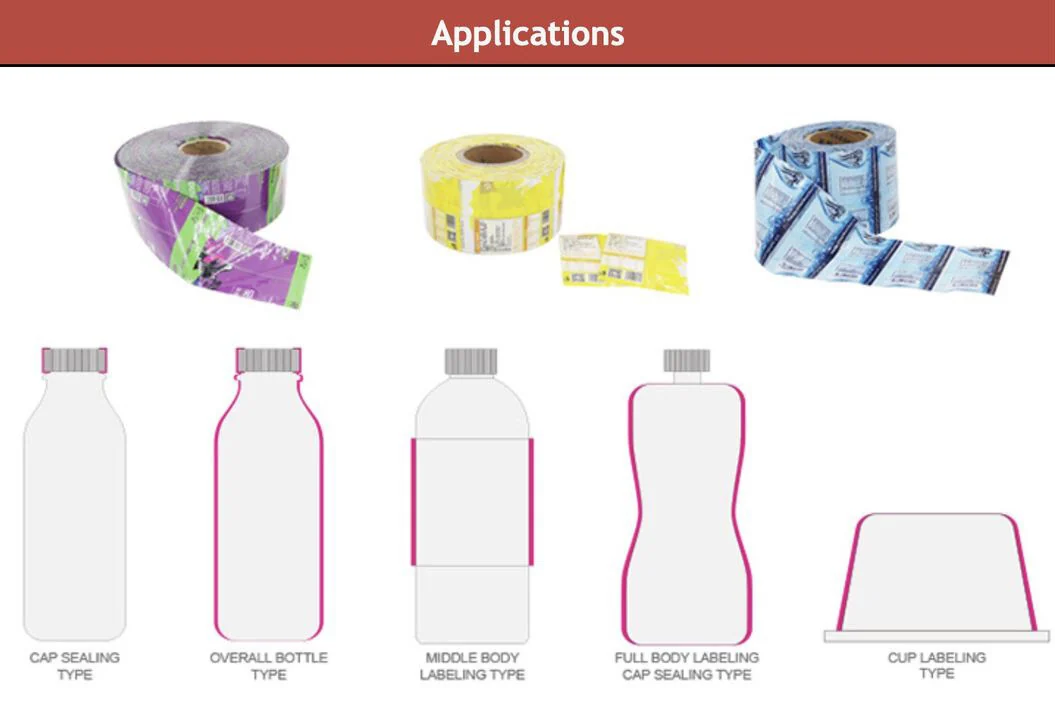

Applications
Applications
Pharmaceutical & Healthcare Industry
Pharmaceutical & Healthcare Industry
Food & Beverage Industry
Food & Beverage Industry
Daily chemical & Beauty Industry
Daily chemical & Beauty Industry

Application notes

  1. Pharmaceutical & Healthcare Industry
  2. Suitable : Medicine, Health products Bottle Material : PET / PE / Glass / Metal Bottle Type : Round / Square / Unique Label Material : PVC/PET Shrink Label
  3. Food & Beverage Industry
  4. Suitable: Bottled water, yogurt cup, canned food etc
  5. Bottle Material : PET / PE / Glass / Metal
  6. Bottle Type : Round / Square / Unique
  7. Material : PVC/PET Shrink Label
  8. Daily chemical & Beauty Industry
  9. Suitable : Daily chemical products, comestic products etc
  10. Label Material : PVC/PET Shrink Label

Equipment details

Follow the machine through each stage.

Machine layout, component photographs and the corresponding process notes from the product record.

Product overview

PLANET MACHINE offers a full range of shrink sleeve label applicators for low, medium, and high-speed production environments. All of our shrink material applicators are capable of performing up to five key sleeving applications: Full body sleeves, Full body over-the-cap sleeves, Partial body sleeves, Tamper evident bands, Multi-packs etc. Paima Packaging also offers wide label format models capable of handling label widths up to 900mm. our shrink sleeve label applicators and machine systems are used in a wide variety of industries including fluid milk, craft beer, ready-to-drink beverages, cosmetics, home care products, and personal care products. Their flexibility and reliable performance make them one of the best values in the shrink sleeving industry.

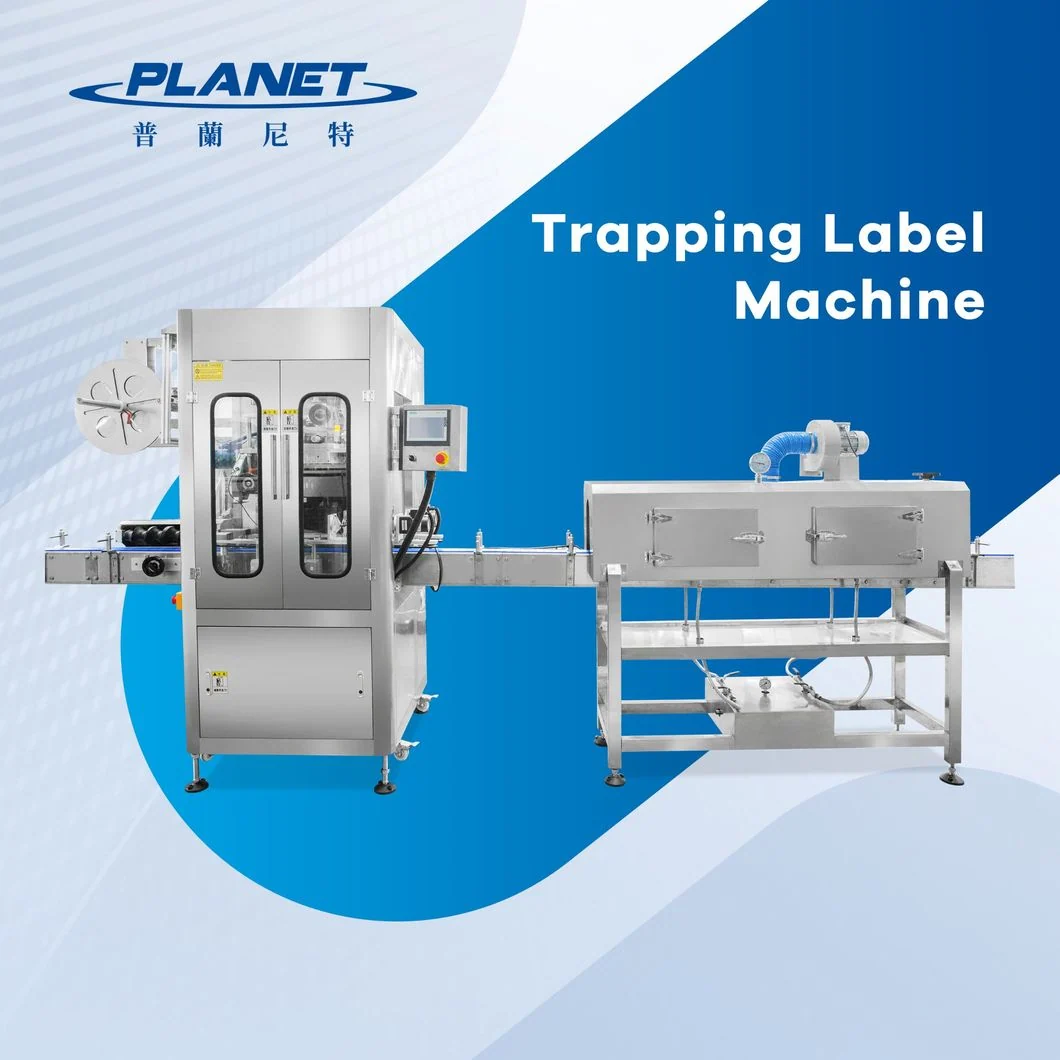

Overview of shrink labeling machine
01 / MACHINE STAGE

Overview of shrink labeling machine

  • (1) PM-series Sleeve Labeling Machine is custom built to meet the exacting demands of manufacturers and suppliers. It can be used stand alone or integrated in-line and matching filling equipment speeds. (2) It is built upon a framework of seam welded, food grade stainless steel section. This solid foundation keeps movement and vibration to an absolute minimum to ensure consistent, accurate labeling. (3) Unit cutter head plane design in China which apply to the container of ∮30 mm-∮130 mm. you never need to change or debug it.It also has unique light touch human-machine screen,that means,auto search original location as well as safety and convenience which is ahead of other congener products.
  • (4) Double shrinking label feed plane, reasonable height which is convenience to fix the label; micro-computer auto figure which avoid enactment and adjustment. you only need to press it lightly ,the label will detect and locate automatically.The change of label is quick and convenience, besides,the cut place is absolutely exact.

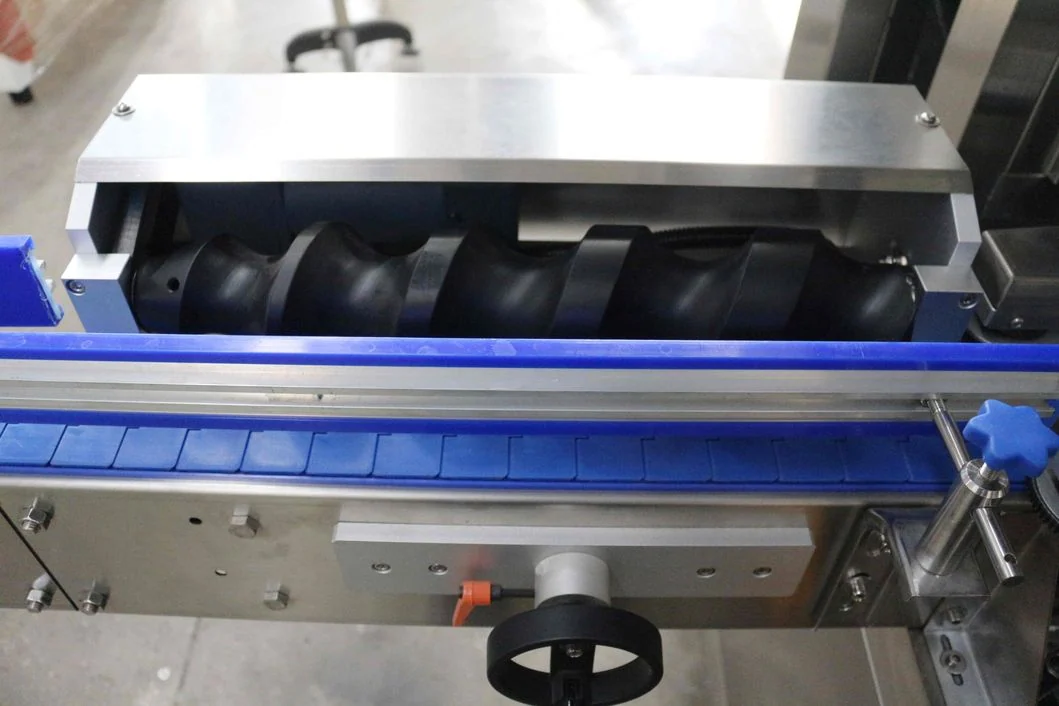

Separating Screw
02 / MACHINE STAGE

Separating Screw

  • Put the label on the bottle, and use the fixed-distance conveying of the screw to separate the bottles at equal distances to facilitate the labeling.

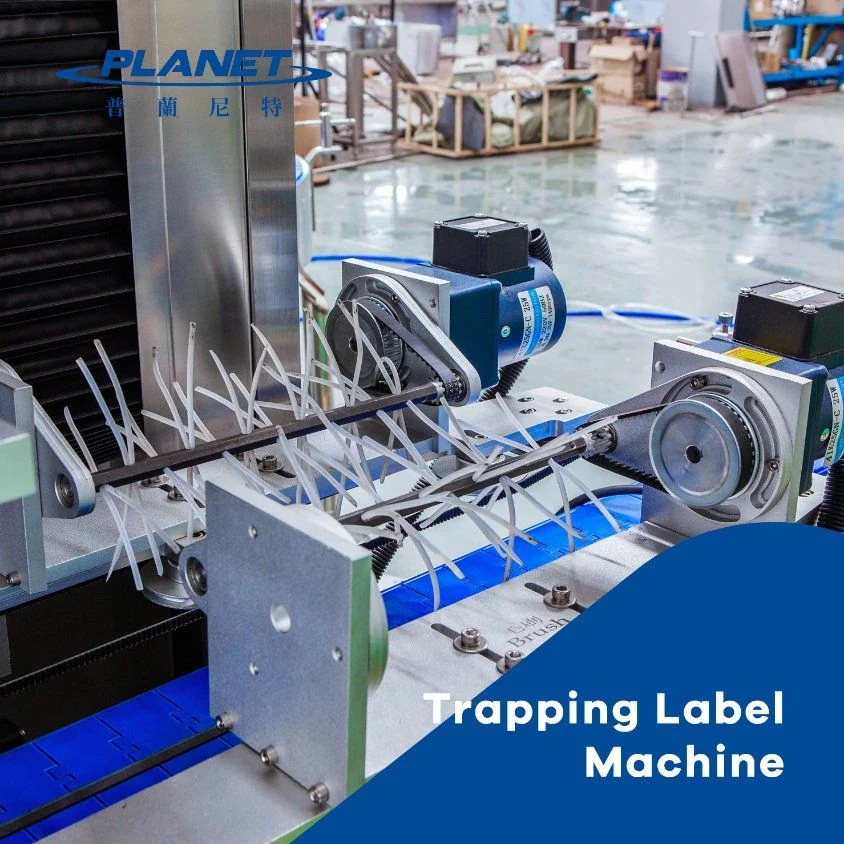

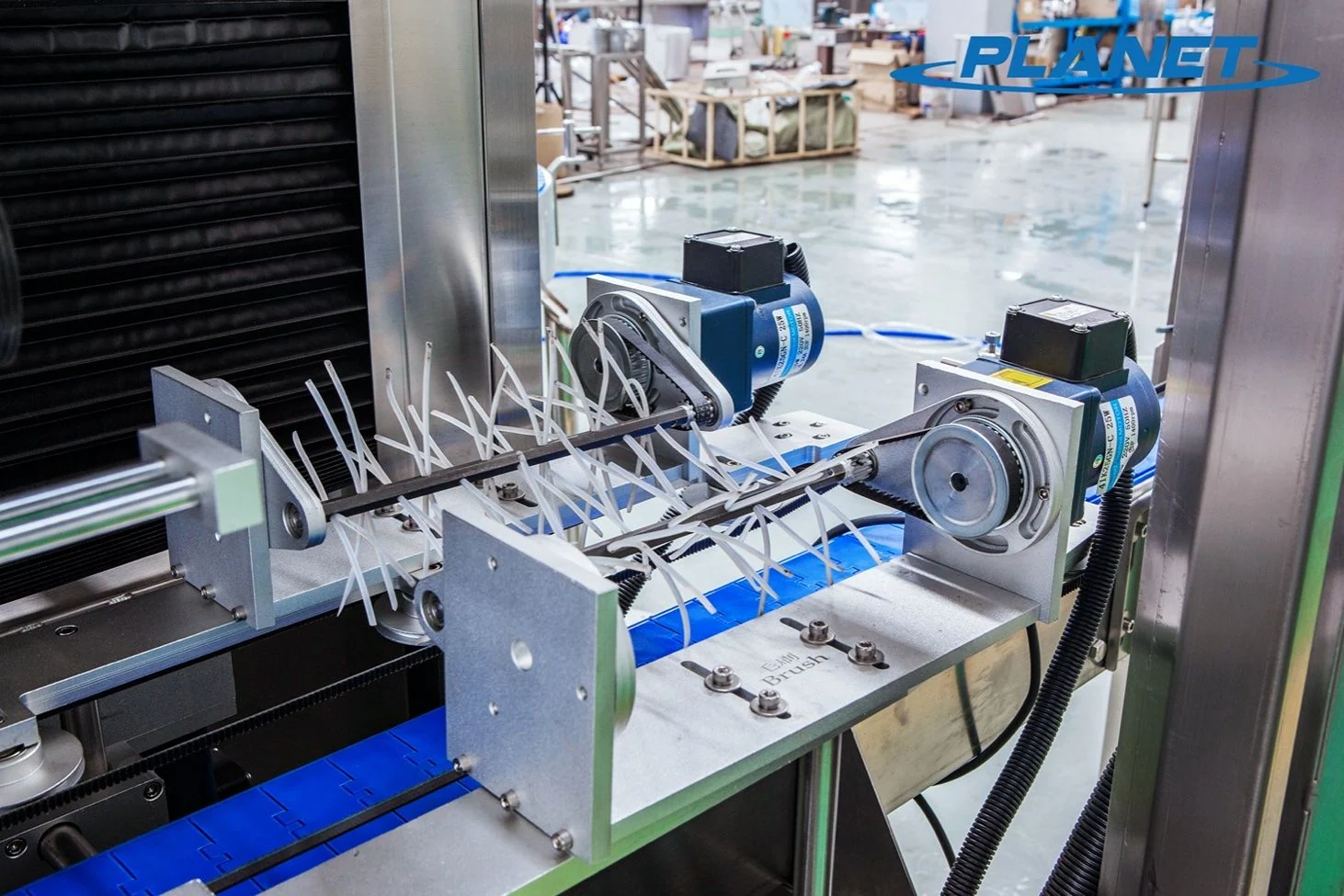

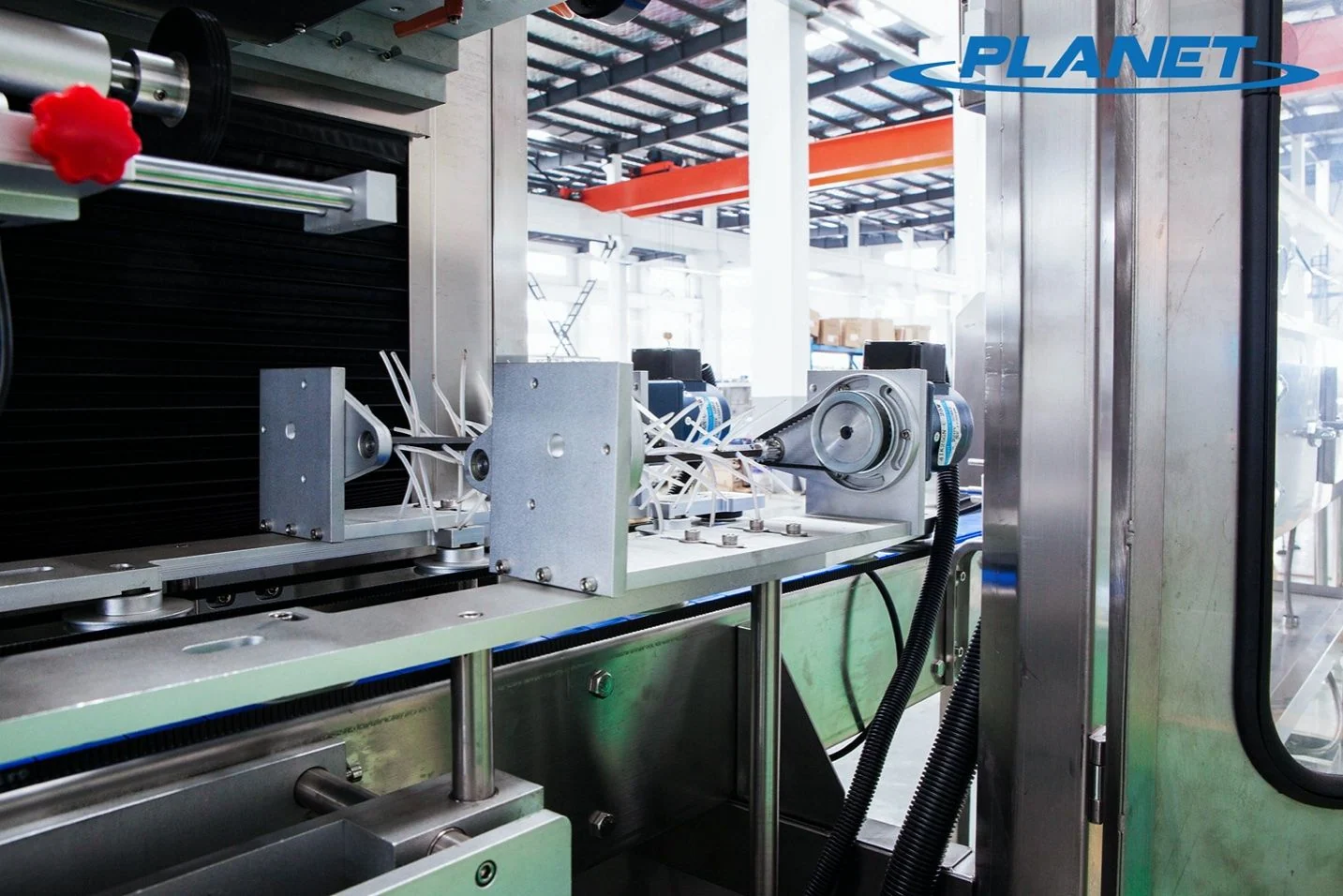

Rubber underbrushes
03 / MACHINE STAGE

Rubber underbrushes

  • Use rubber to brush the label sleeved in the bottle until it is positioned to avoid incorrect label position.

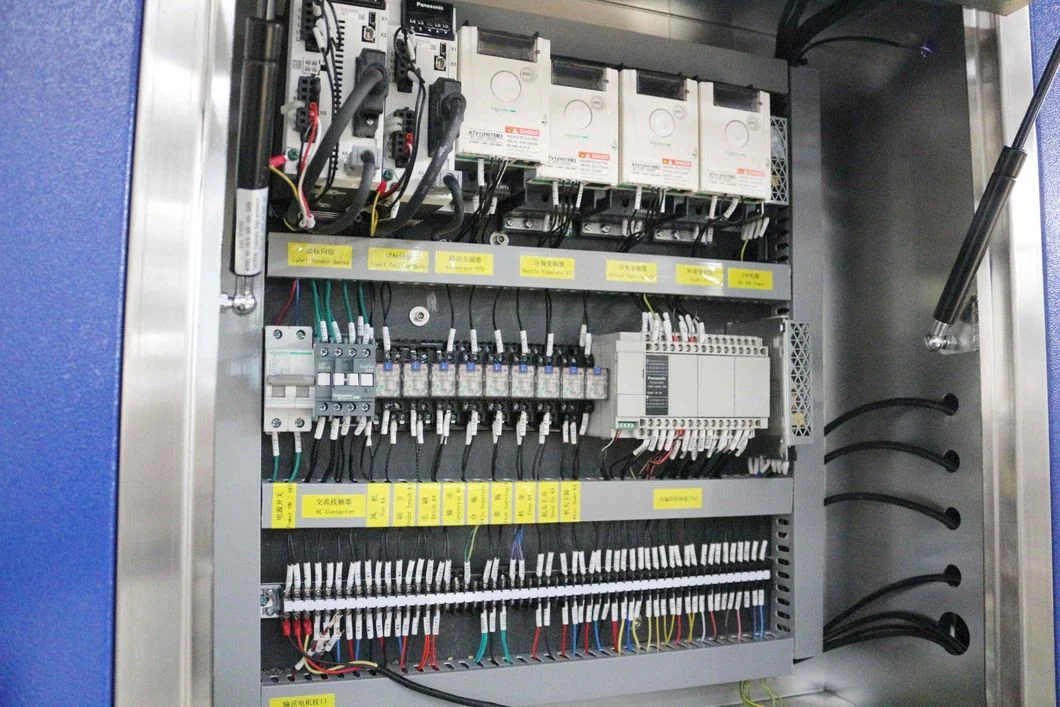

Electric box
04 / MACHINE STAGE

Electric box

  • Use well-known brand electrical components, such as Siemens, Schneider, Mitsubishi, ABB etc.

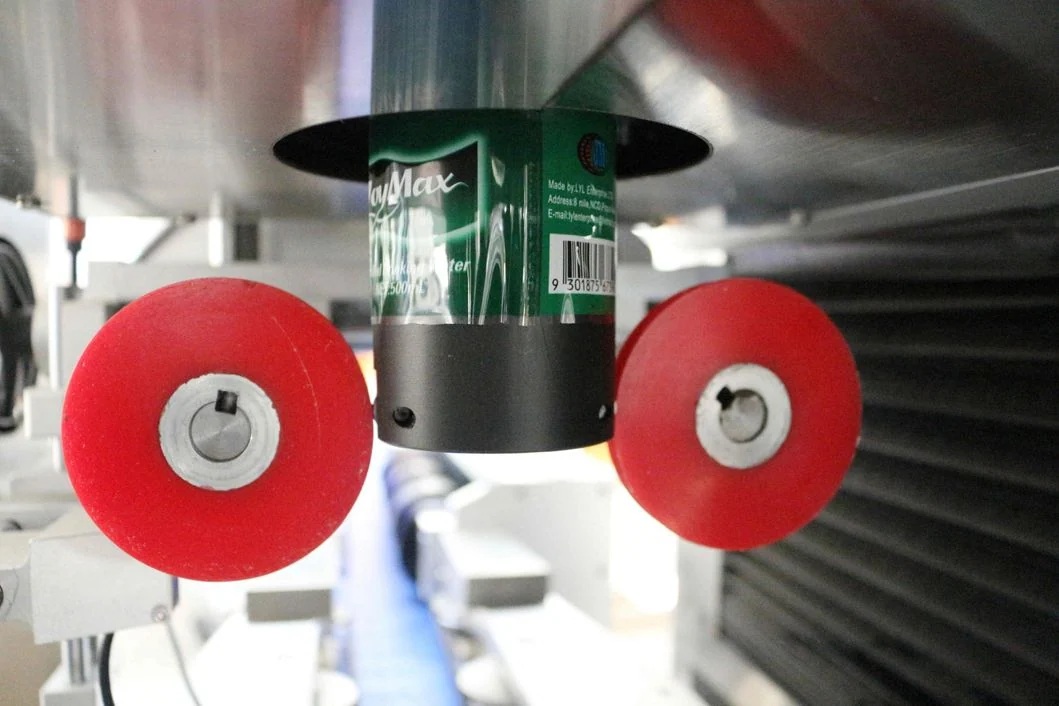

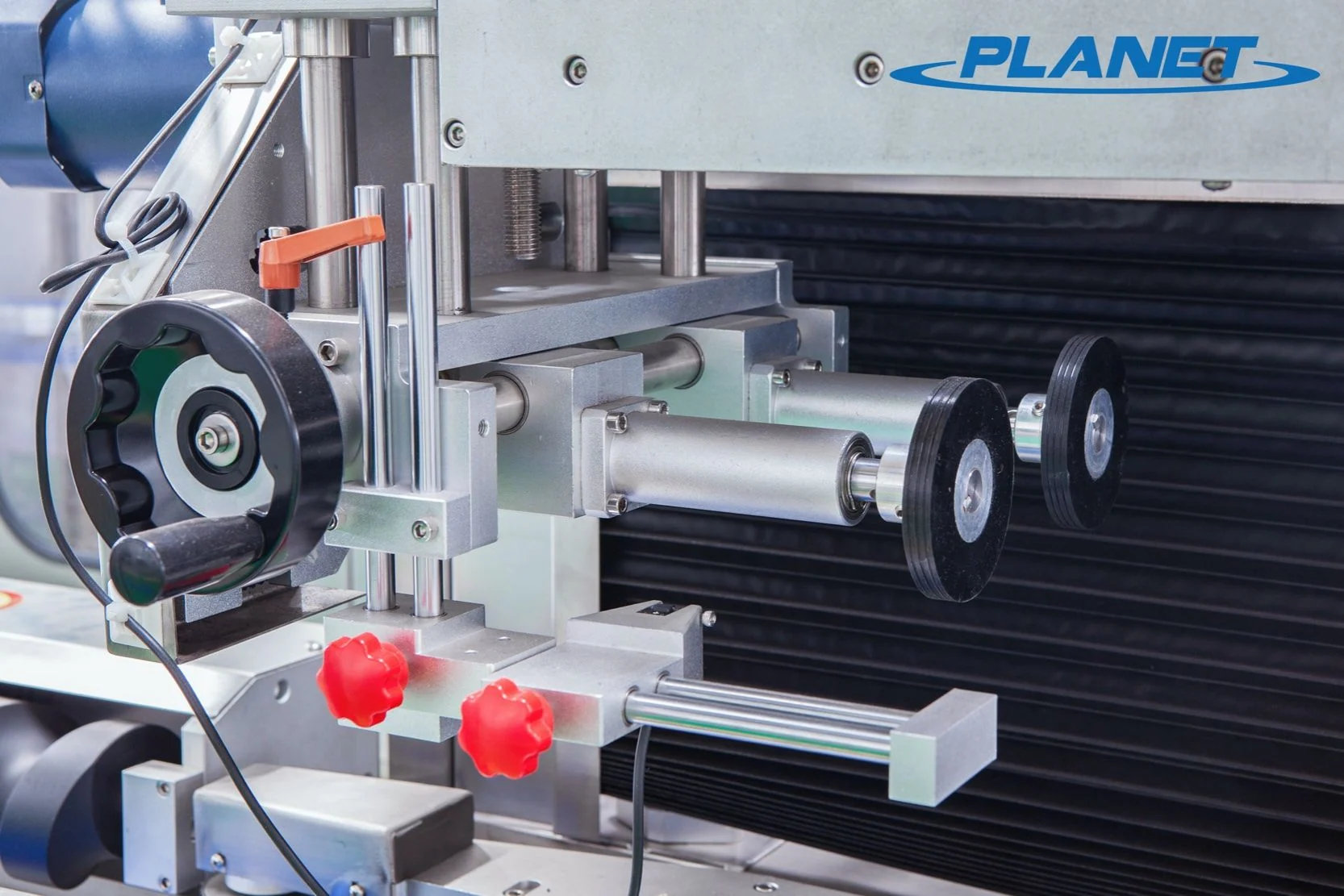

Drive rollers
05 / MACHINE STAGE

Drive rollers

  • It adopts single-group or double-group mechanism synchronous servo motor control, so that the shrink film can be conveyed in a fixed size.

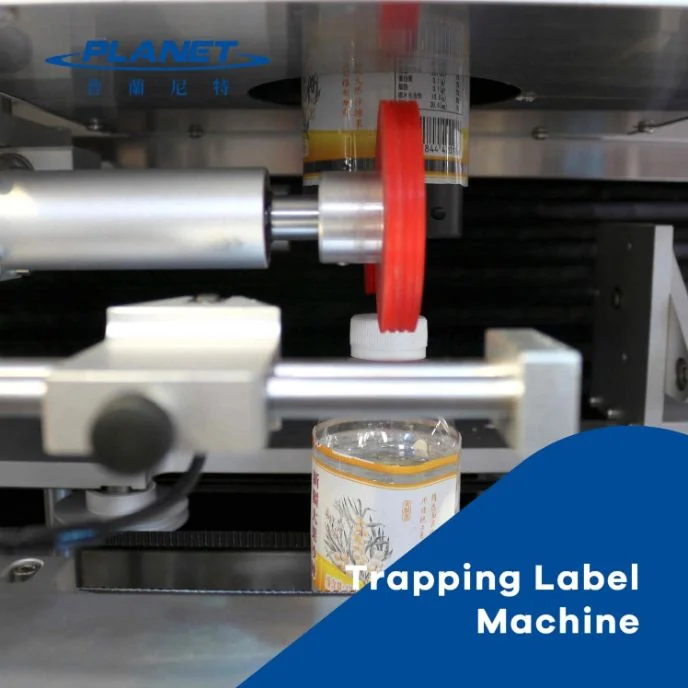

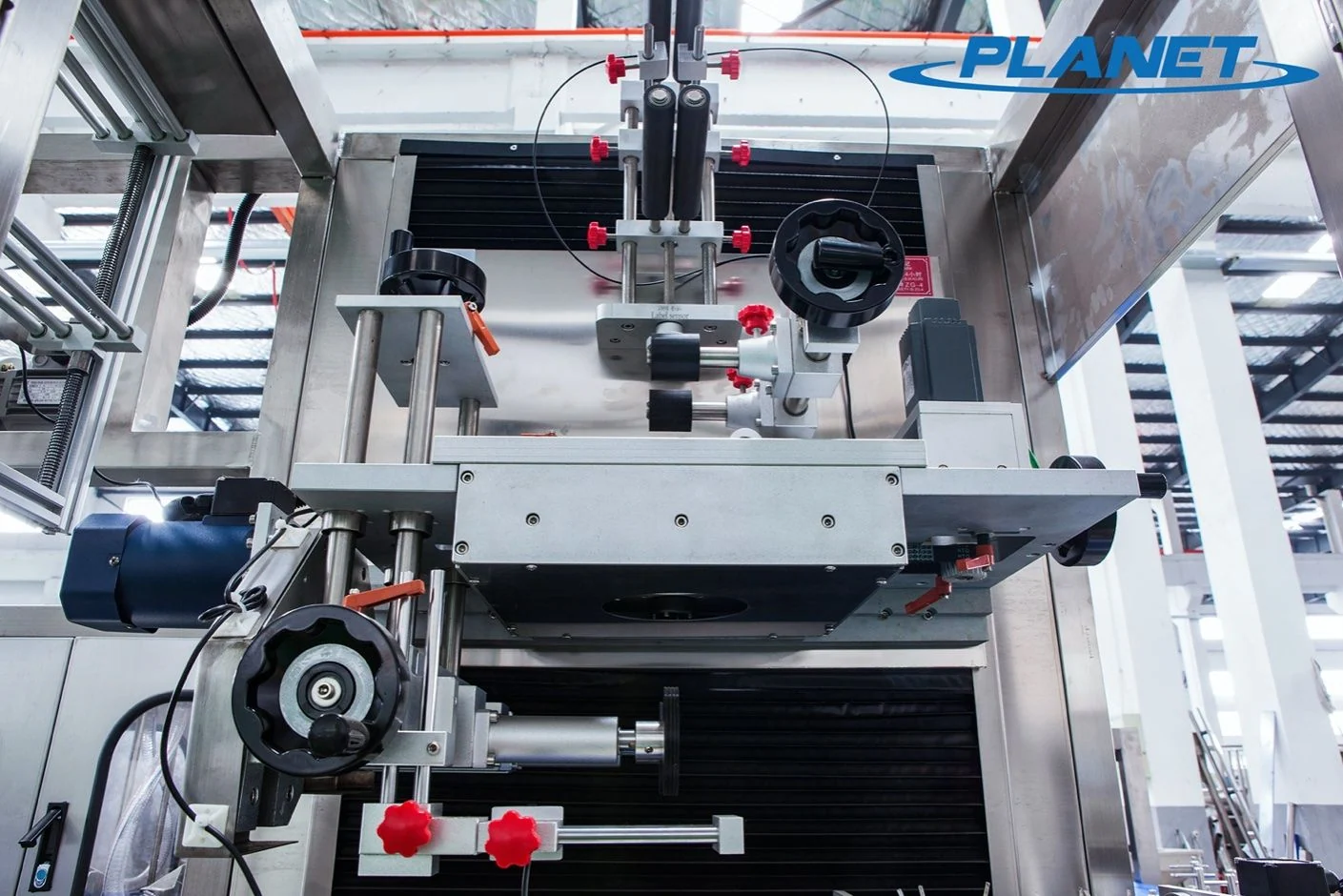

Cutter set
06 / MACHINE STAGE

Cutter set

  • Built-in blade, planetary pairing method and deflection crankshaft-type steel structure to cut the shrink film.
Conveyor Belt
07 / MACHINE STAGE

Conveyor Belt

  • Use the frequency converter to adjust the conveyor belt speed to match the speed suitable for the production capacity.

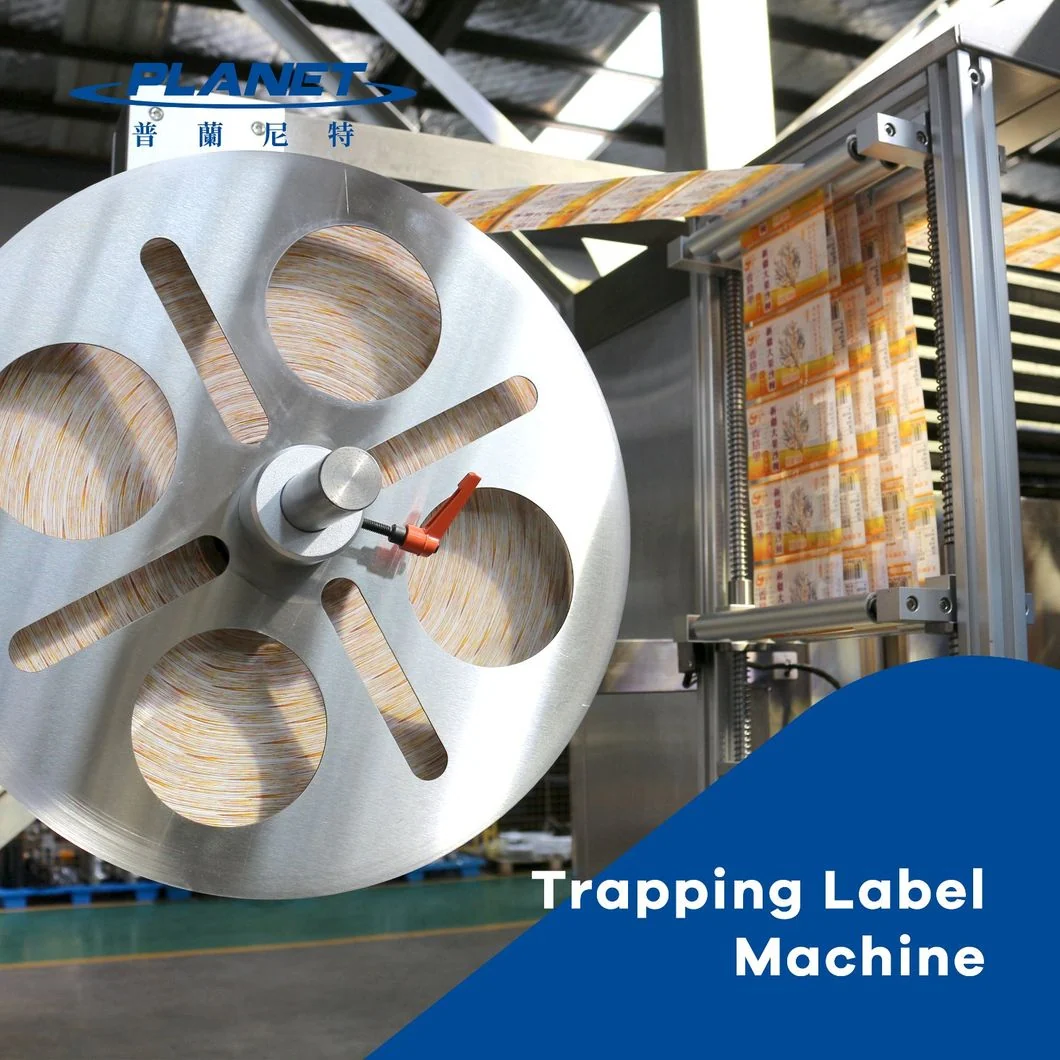

Feeding Group
08 / MACHINE STAGE

Feeding Group

  • It is composed of a feeder box that controls the tension of the label feeding and a feeder rack above the electric eye rack group where the label is turned and positioned to convey the label film material.

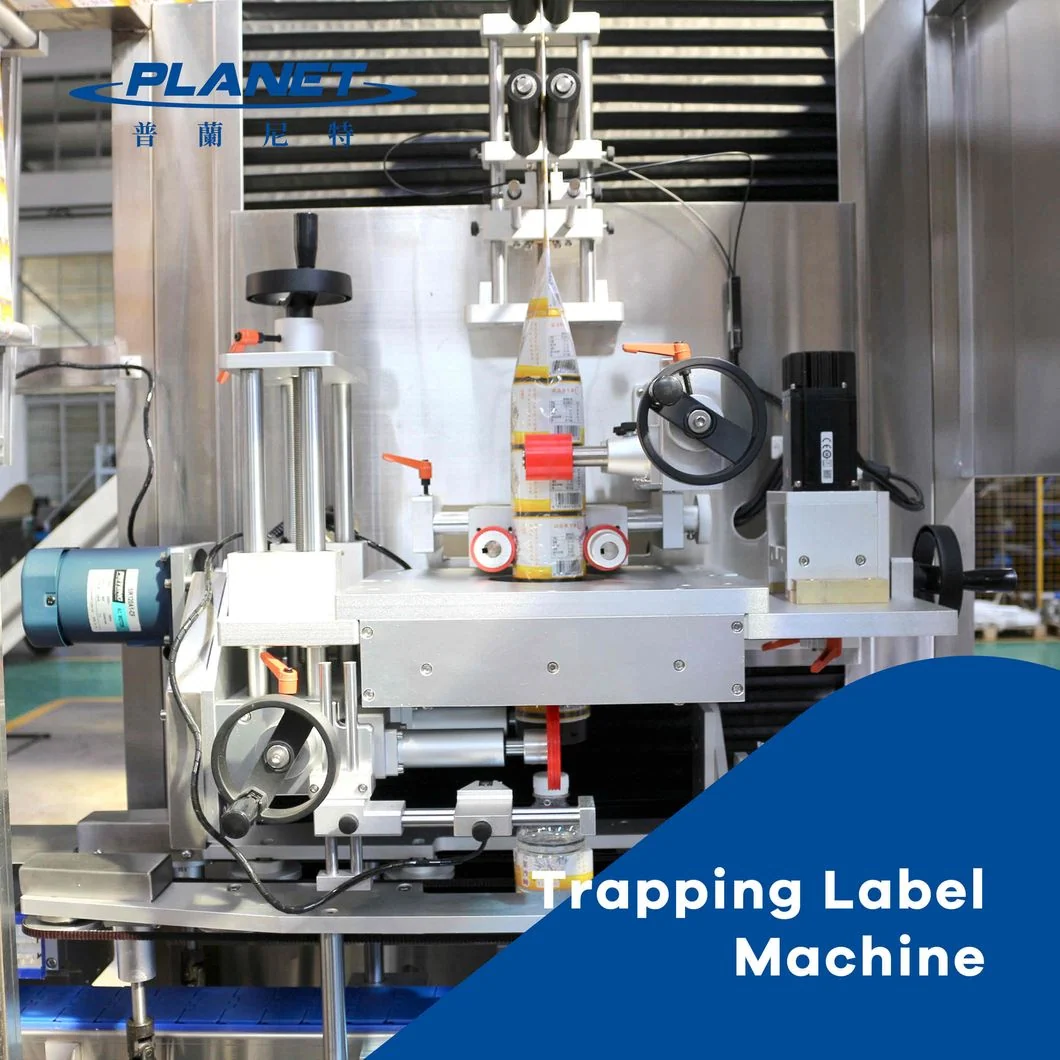

Center column
09 / MACHINE STAGE

Center colum

  • Put the label film material in and open, so that the film material can be conveyed and cut. The whole machine is made of aluminum alloy with anode treatment and 304 stainless steel material, used to support the host and fix the conveyor belt.
PLC Control System
10 / MACHINE STAGE

PLC Control System

  • It is the control center of this machine. Each operation display page is divided into manual, automatic, setting, abnormal display, etc. In addition, there are several auxiliary knobs, which are used to operate the labeling operation.

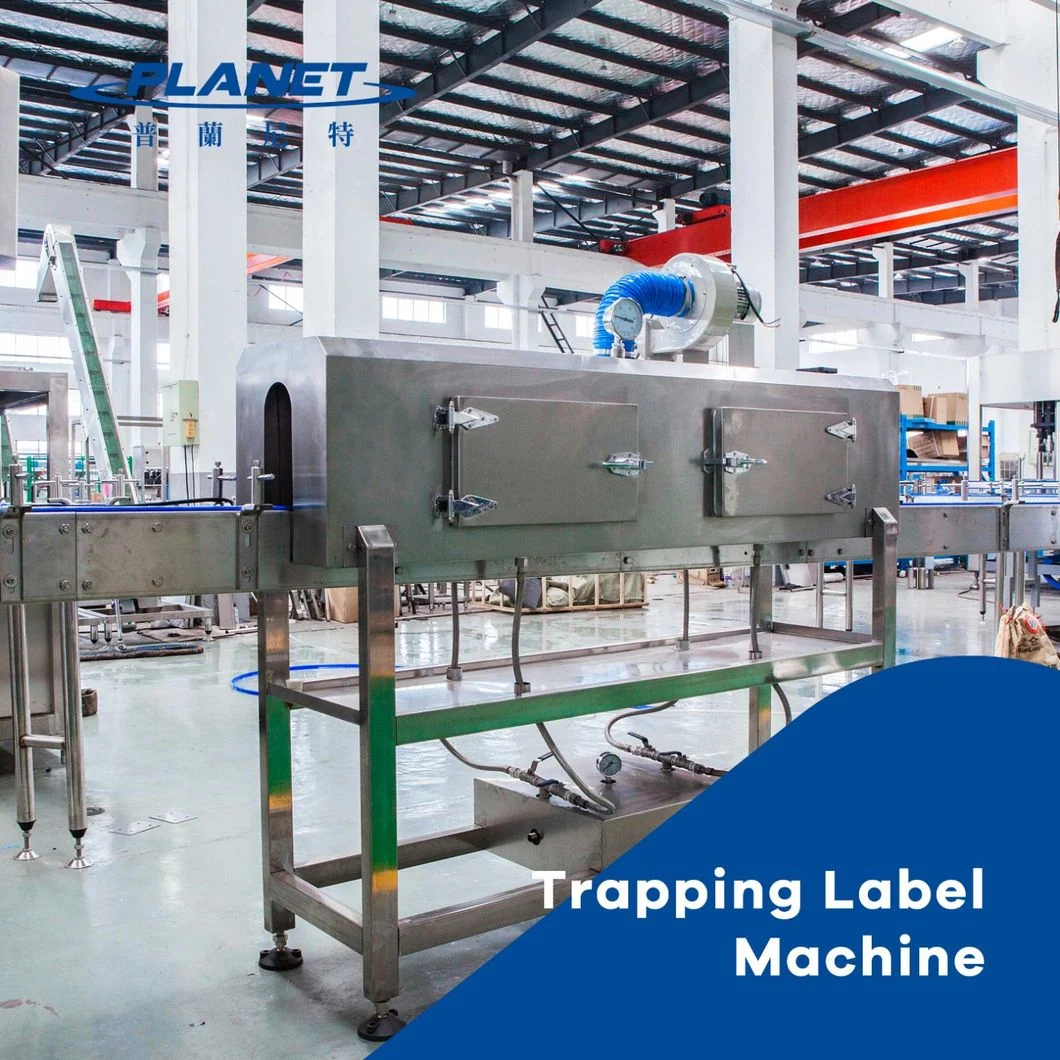

Steam heat shrink tunnel
11 / MACHINE STAGE

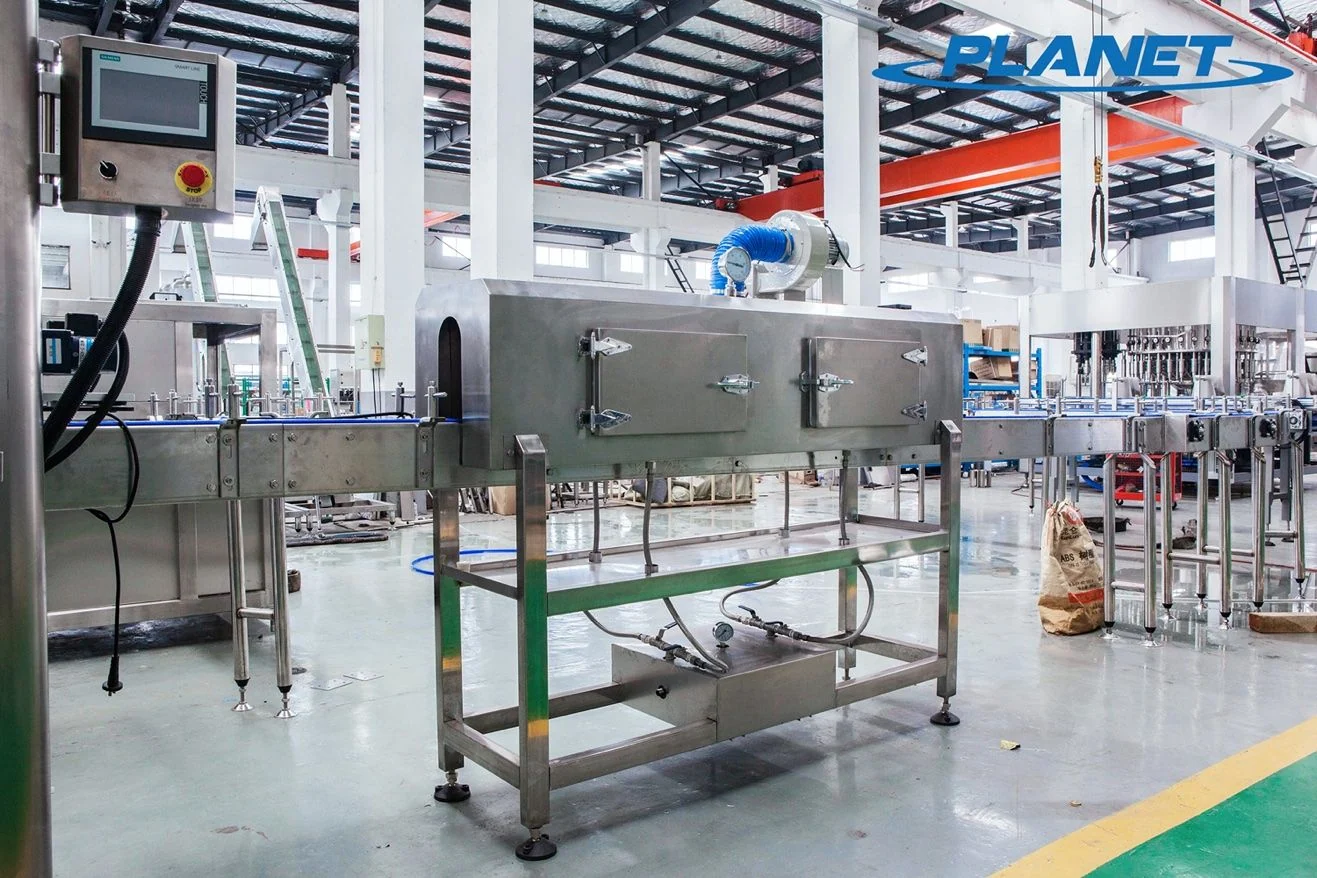

Steam heat shrink tunnel

  • Tunnel provides the support for making hot sleeves which can be readily wrapped on products or containers. The tunnels are available with different mechanisms which can be chosen based on the wrapping material and its compatibility with the type of heat produced inside the tunnel. Consumers can choose hot steam tunnel or electric heat tunnels as per the labeling material texture and compatibility.

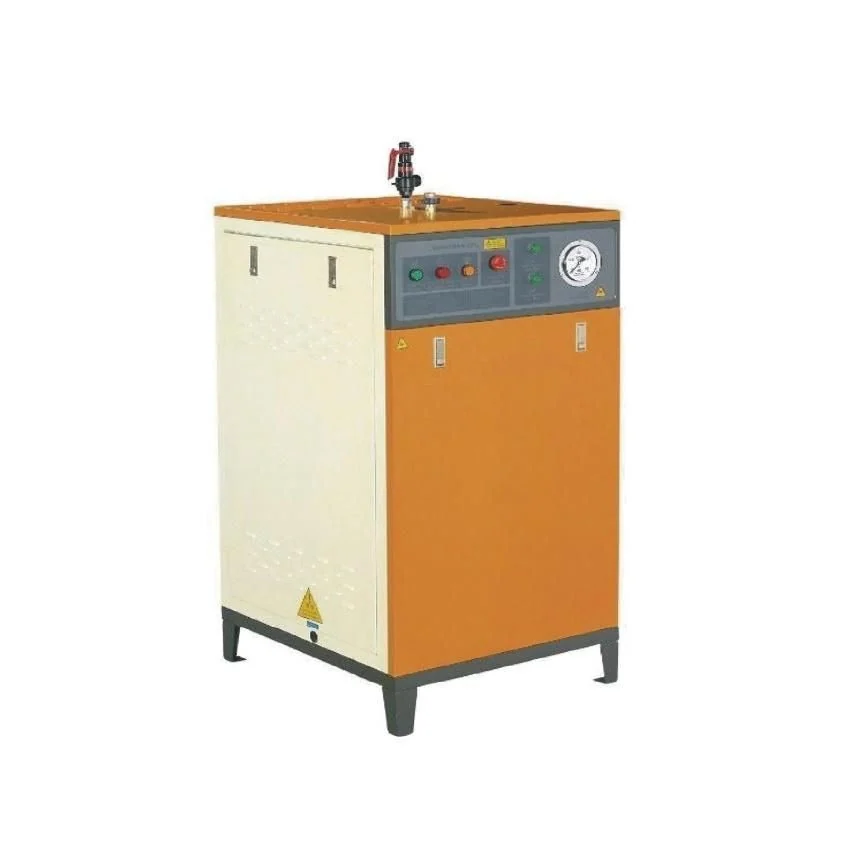

Steam Generator
12 / MACHINE STAGE

Steam Generator

  • The steam pressure is 3.5 bar, then open the steam hand valve to about 45 degrees, let the steam shrinking furnace heat up, and observe the temperature gauge on the shrinking furnace at 95-100 degrees.
