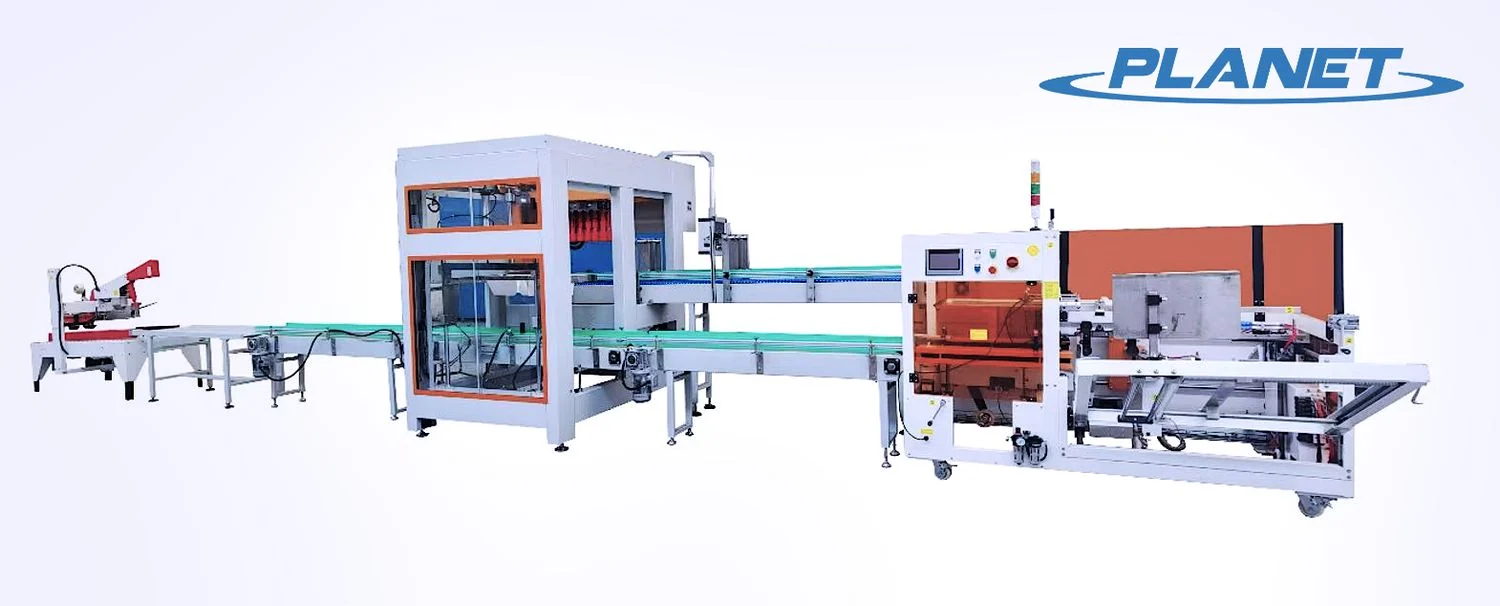

Grab-Type Case Packer

Automatic pick-and-place case packing for arranging containers before controlled loading into prepared cases.

Case packing
Pick & place
Bottle handling

Compare specifications Request a proposal

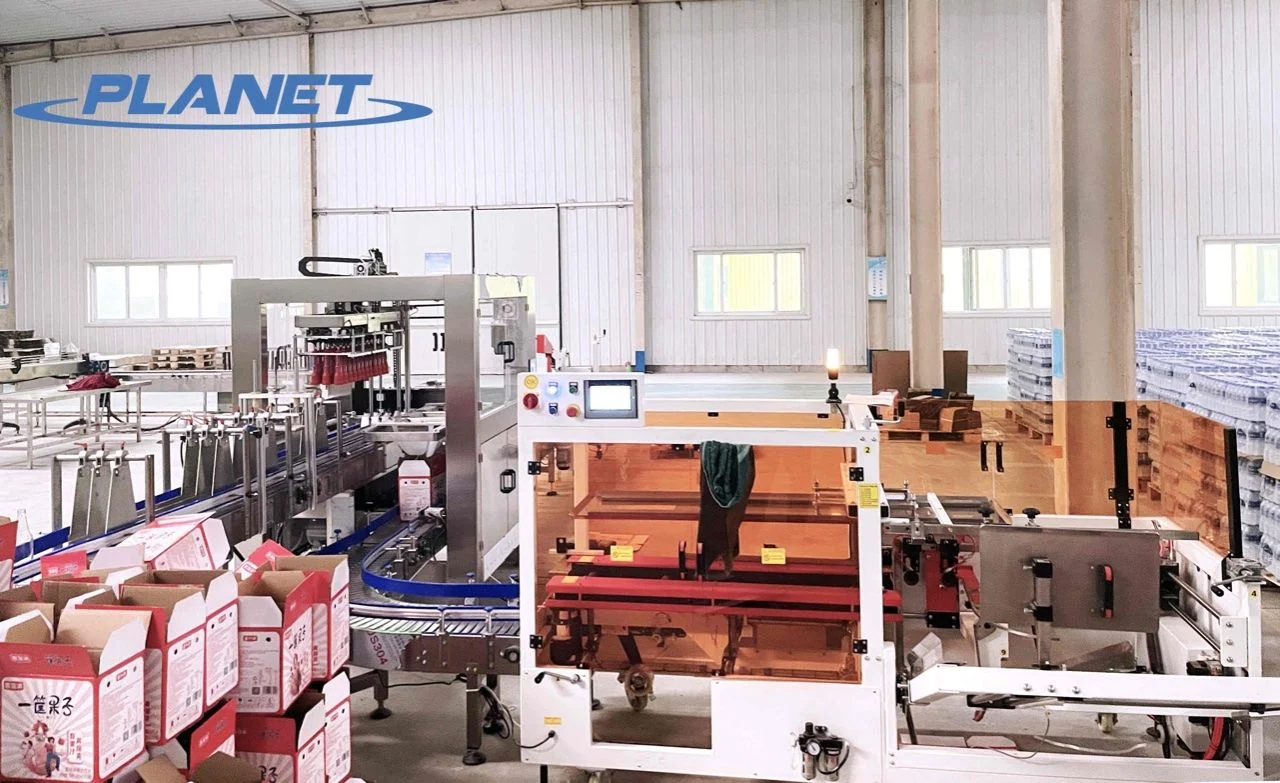

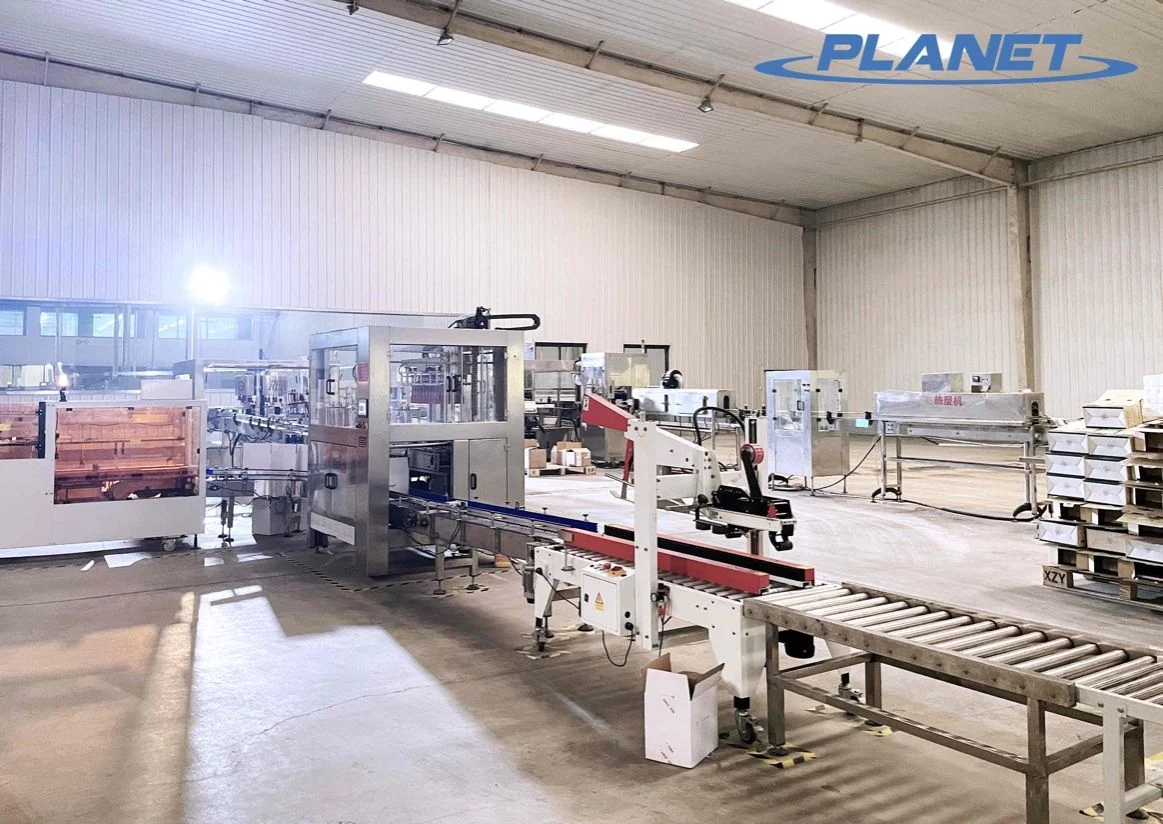

Production footage

See the equipment in motion.

Review the production sequence and equipment details before discussing your own line.

Discuss your project

Published technical data

Compare the configuration.

Specifications are from the published product record. Confirm the selected model, output and utilities for your project.

Technical specifications

Model	PM-GT-P
Applicable Container	Plastic bottle, Glass bottle, Tins and Cans
Product Size	250ML-2000ML
Container Diameter	L250-450xW 150-400 xH 100-400mm
Capacity	5-20 Cartons/per min
Machine Dimension(LWH)	L6285W2582H2115mm
Carton Size	500
Power	4KW
Power Supply	3PH 220V/380V 50/60Hz
Air Pressure	6-8kg/cm2
Height of Work Table	Feed-in worktable 850mm; out 650mm
Packing Material	Carton
Automatic carton forming machine	L 2100 xW 2400x H 2400 mm
Carton erector machine	L 2000 xW 1900x H 1450 mm
Carton tapper	L 2147xW 1058 xH 1524 mm

Additional product data

Devices	Brand	Origins
PLC	SIEMENS	Germany
Frequency Converter	Danfoss	Danmark
Touch Screen	SIEMENS	Germany
Low-voltage Apparatus	Schneider	France
Drive Motor	Panasonic	Janpan
Pneumatic Components	SMC	Germany
Photoelectric Sensor	SICK	Germany

Package & product fit

Containers & handling.

Published container examples and process guidance for the selected machine.

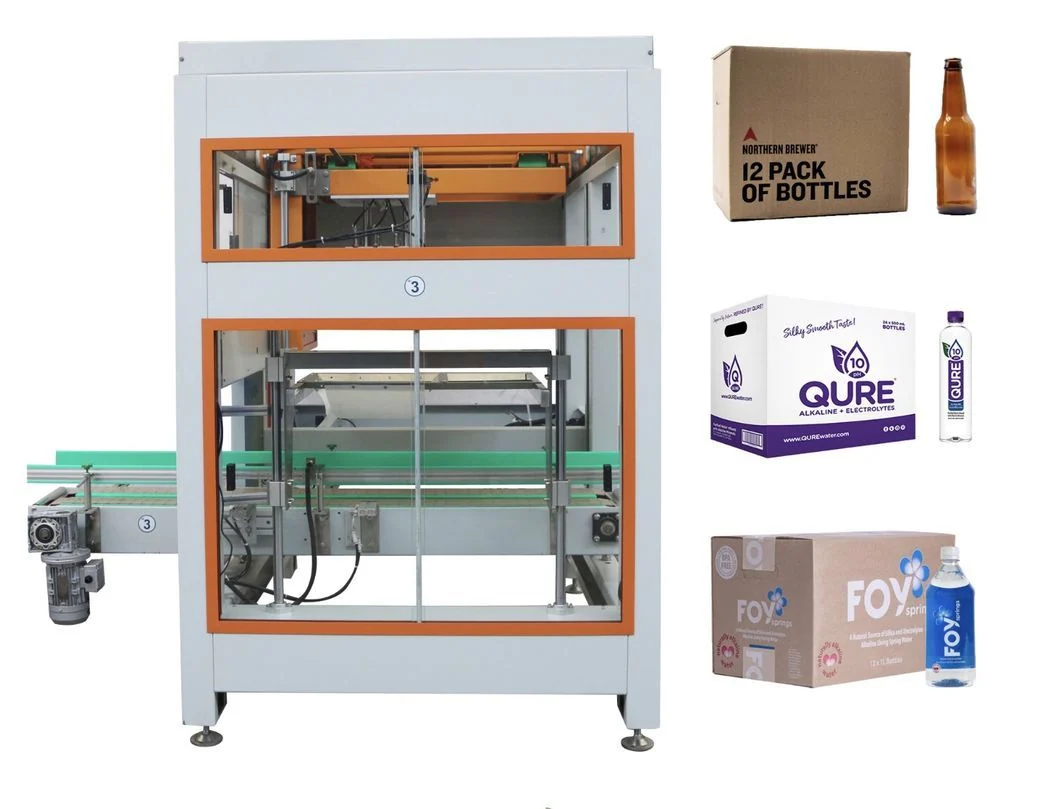

Application notes

Glass bottles
Suitable : Beer, wine, brandy, vodeka
Bottle Type : Round / Square / Unique
Carton : Carton Forming Packing Sealing Machine.

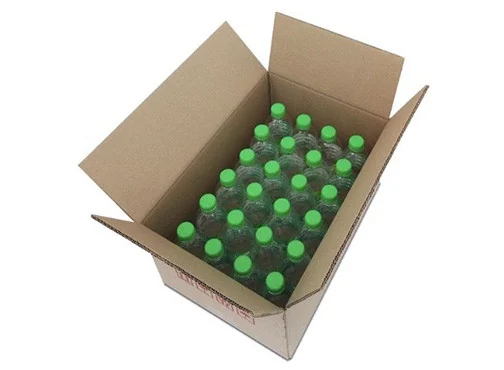

Plastic bottles
Suitable: Water, juice, soft drink etc Bottle
Type : Round / Square / Unique
Carton: Carton Forming Packing Sealing Machine.

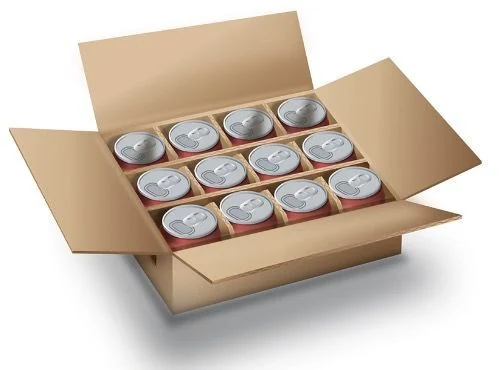

Daily chemical & Beauty Industry
Suitable : Daily chemical products

Equipment details

Follow the machine through each stage.

Machine layout, component photographs and the corresponding process notes from the product record.

Product overview

PM-GT series pick-place carton packing machine is used for grasping and placing bottles by air inflation and deflation. Through the mechanical operation, pneumatic and electric control, the bottles are accurately and steadily loaded into the carton from the conveyor belt. According to customer requirements for product packaging, the product feed for accurate whole column grouping, while underlying pre-sync to the product carton boxes preset position, and then by the lifting mechanism rear jacking good product grouping randomly fall into cartons, lifting mechanism automatically drops to a horizontal position and the outlet conveyor, cartons output by the transport section; each part of the linkage is adjusted by the electric air control to simultaneously ensure that each group of products can be accurate and effective automatic packing and output. Application: Fields of food, beverage,pharmaceutical, cosmetic, chemical, and other. Common to all types of PET bottles, cans, Pak packaging.

01 / MACHINE STAGE

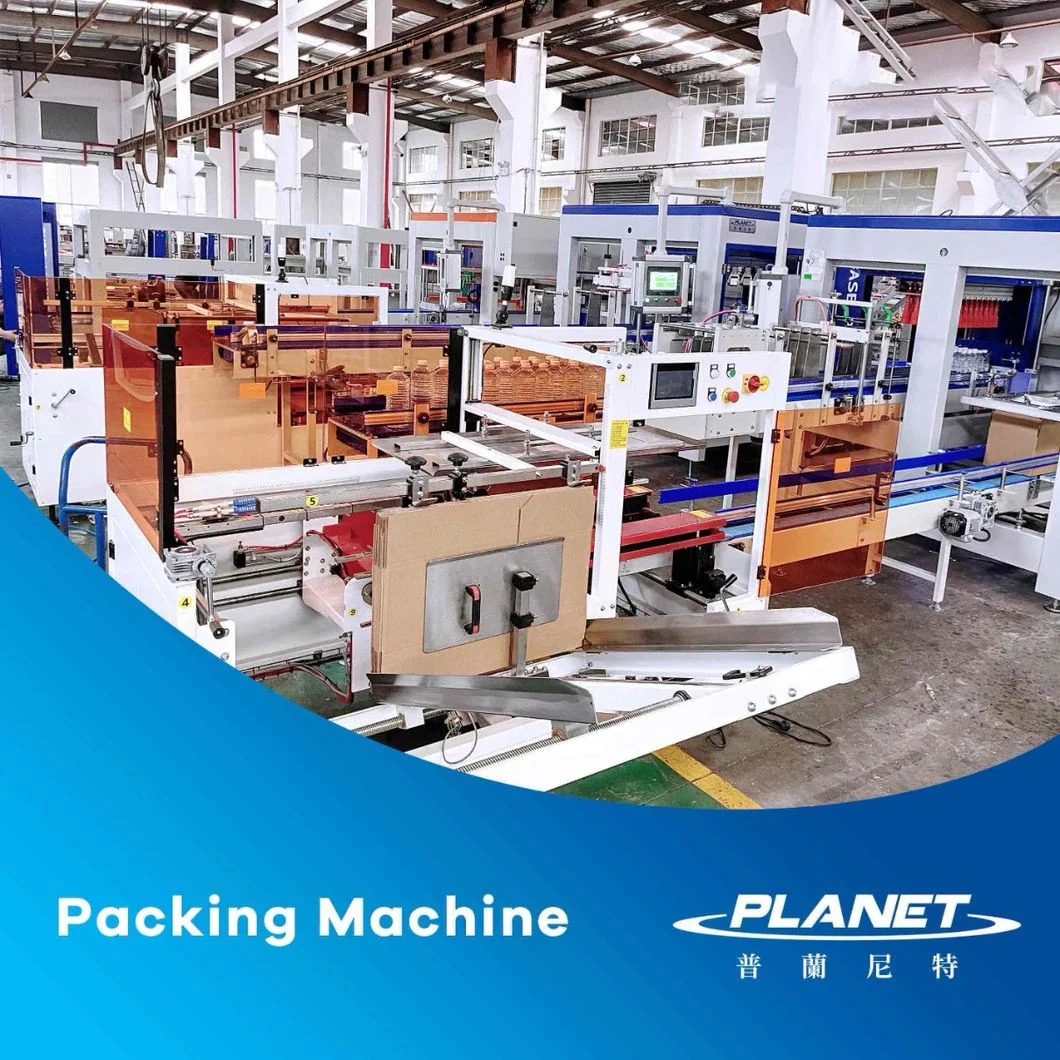

Main Features of Carton Packing Machine

Reliable operation This machine using special pneumatic components to achieve the pick and place of products. Through mechanical operation,pneumatic and electrical control, it can accurately and reliably load products from the bottle table into the carton.
Smooth operation The entire packing process is driven by the variable frequency motor to drive different mechanical mechanisms independently to rise, translate, and lower the product, and it is combined with pneumatic, electrical, and light control to achieve automation. Coordinated movements, smooth and accurate movement. Into the box operation with manual into the box, automatic box, and continuous fast into the box and so on.
Grasping operation It is equipped with manual operation and automatic operation. With the advantages of Operational safety, small site coverage, and Large operating space. With a variety of protection functions, in case of failure in a timely manner. For example, if the bottle is not full on the incoming belt and bottle transportation platform, the bottle will automatically stop to wait; The machine will automatically shut down when the scratched bottle and cartons are misplaced.

02 / MACHINE STAGE

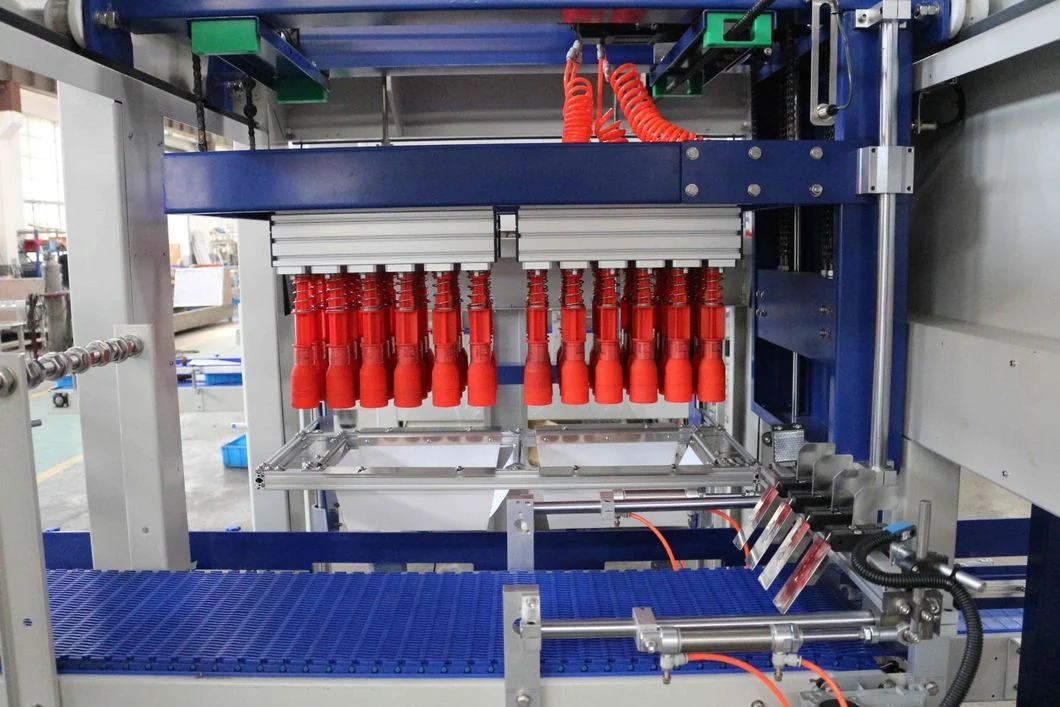

Bottle grasper

According to different bottle shape, bottle grasper is specially designed, airbag style grasper head,no injury to bottles, no bottle falling and low air consumption; Bottler grasping is driven by up-down and side moving servo motors, that means there is designed height difference for bottle grasping area and box filling part for different bottles.

03 / MACHINE STAGE

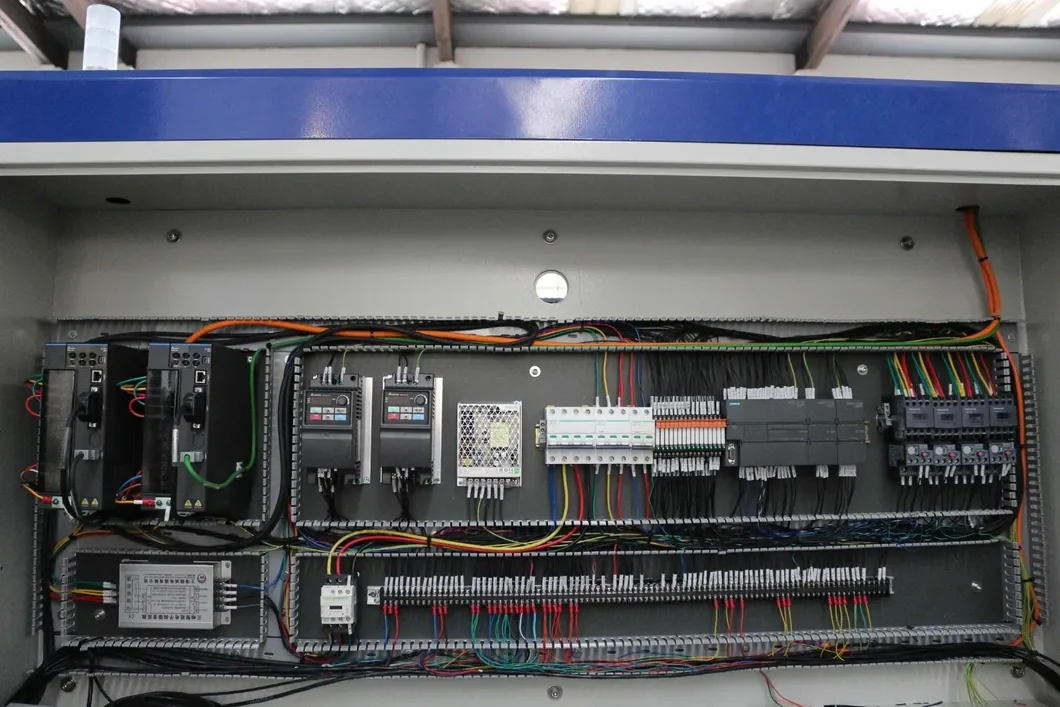

Electrical componets

Machine is applied with SIEMENS PLC, DELTA frequency inverter, schneider contactor etc. our soferware engineer design a smart and stable program to guarrantee stable and good performance of machine.

04 / MACHINE STAGE

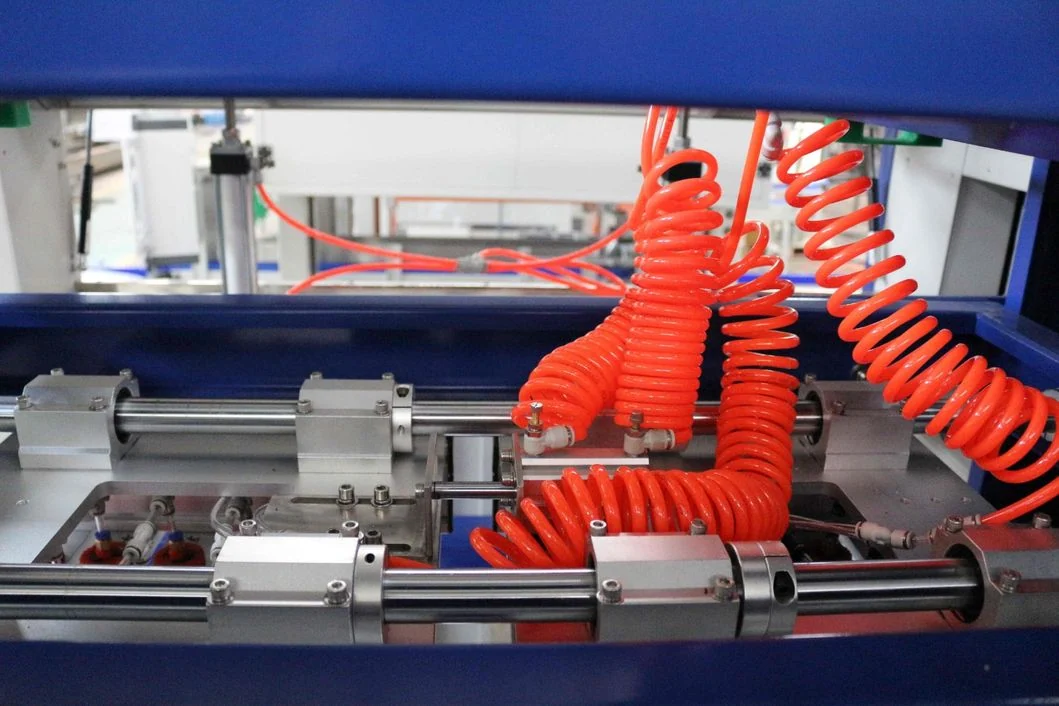

Linear guide rail

It helps machine runs smoothly ,and low noise, low gas consumption. we use high quality Linear guide rail to guarrantee the stable operation to reduce quantity of maintenance

05 / MACHINE STAGE

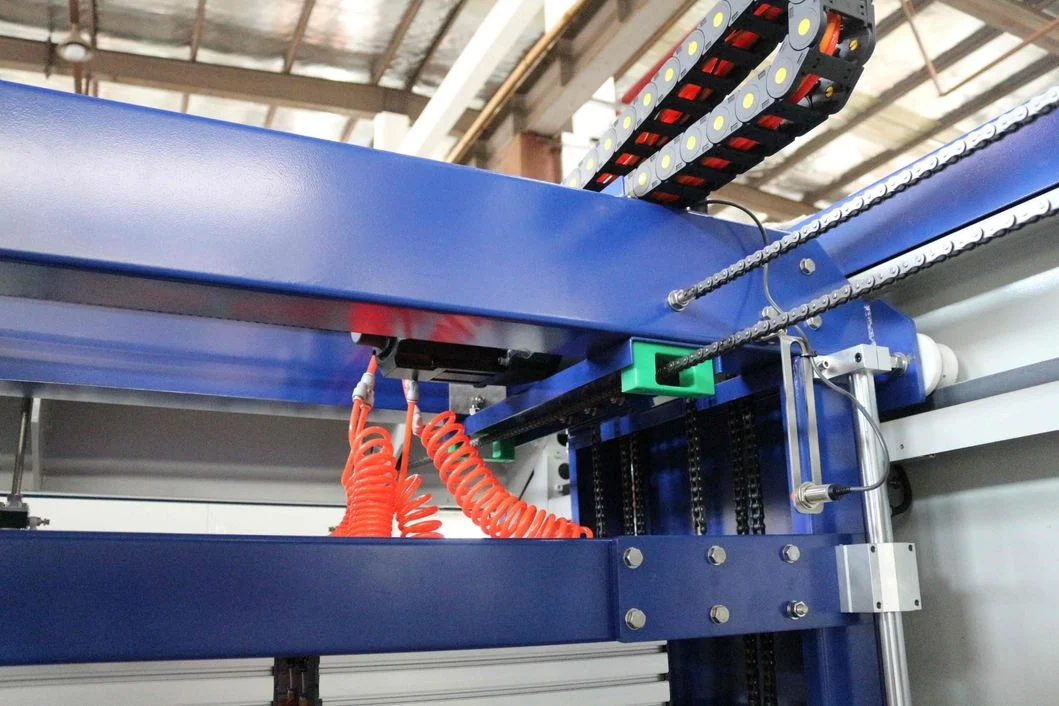

Servo motor driver

Servo motor device help reduce the electrical consumption, and will have high precision of movement, to guarrante the stability and efficience of machines. controled by PLC and easy to do adjustment.

06 / MACHINE STAGE

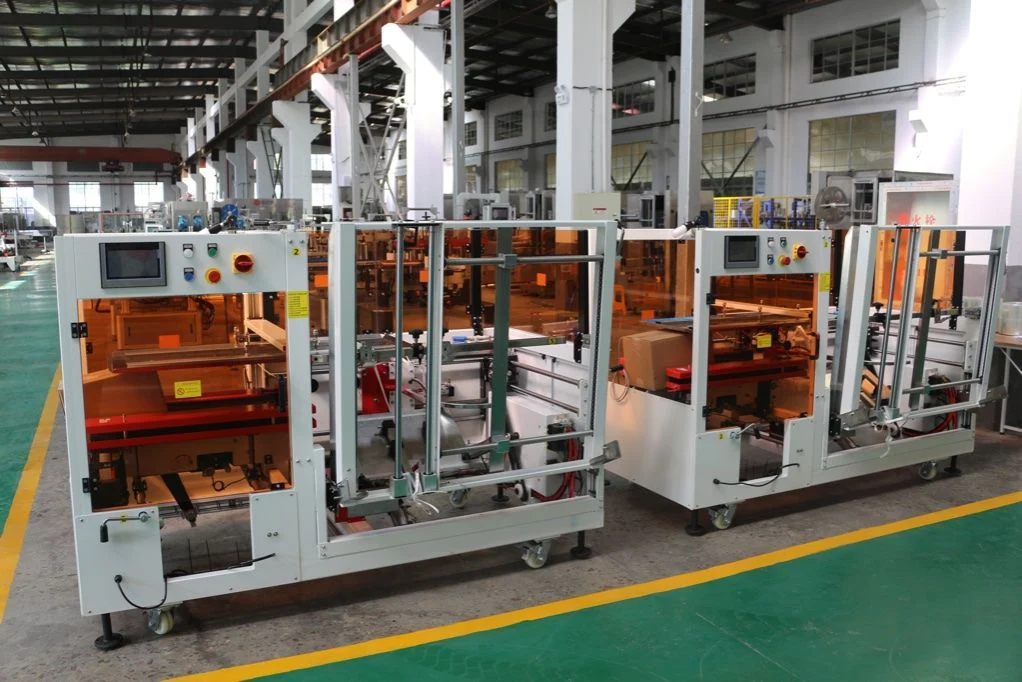

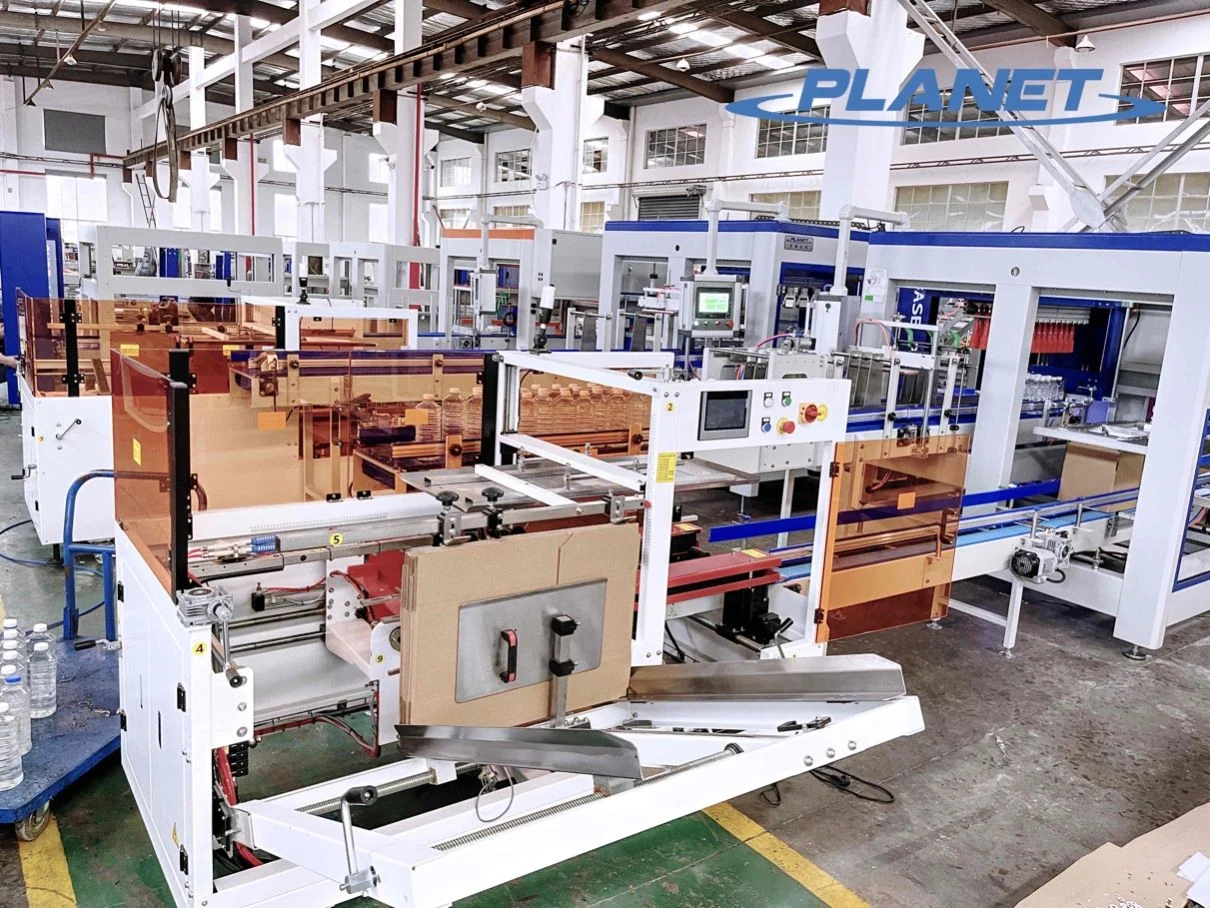

Case Erector Machine

Advanced technology manufacturing, and advanced parts, electrical components and pneumatic components. 2. With a vertical storage, so that you can add carton at any time, be sure the machine keeps running continuously. 3. It is suitable for one kind carton size at one time, when you need to change a different carton box. It takes about one to two minutes. 4. Reasonable design, synchronous absorb forming, folding bottom and bottom sealing. 5. Its body and part performance precisely and durably, operation process and no vibration, operation stability, long life span, high efficiency. 6. Equipped with blade protection device, avoid operation when he accidentally stabbed 7. It can be used separately, or contact with the production line together.

07 / MACHINE STAGE

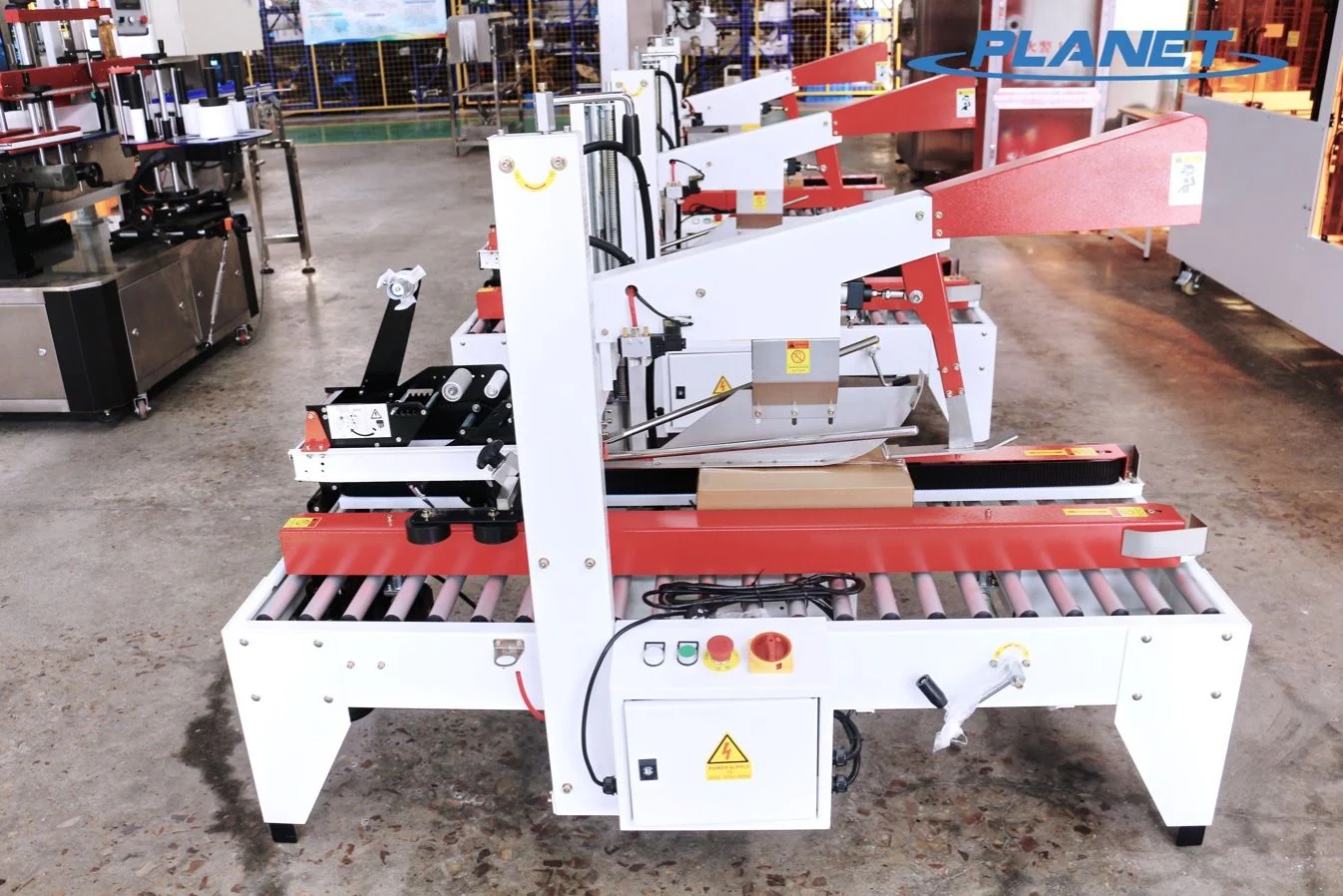

Case Tapper Machine

Automatic upper flap-folding 2. Easy operation 3. New type of tape head 4. Both side compression rollers for tight sealing 5. Top mast with cushion for smooth sealing 6. Tape overlap length 60±5mm 7. Two-side belt driven with universal bearing: Precise, Low noise,Durable parts and belt 8. Caster with brake
