Linear Shrink-Wrapping Machine

Continuous secondary-packaging equipment for collating containers, applying film and forming stable multipacks.

Film multipacks
Bottle & can packs
Continuous operation

Compare specifications Request a proposal

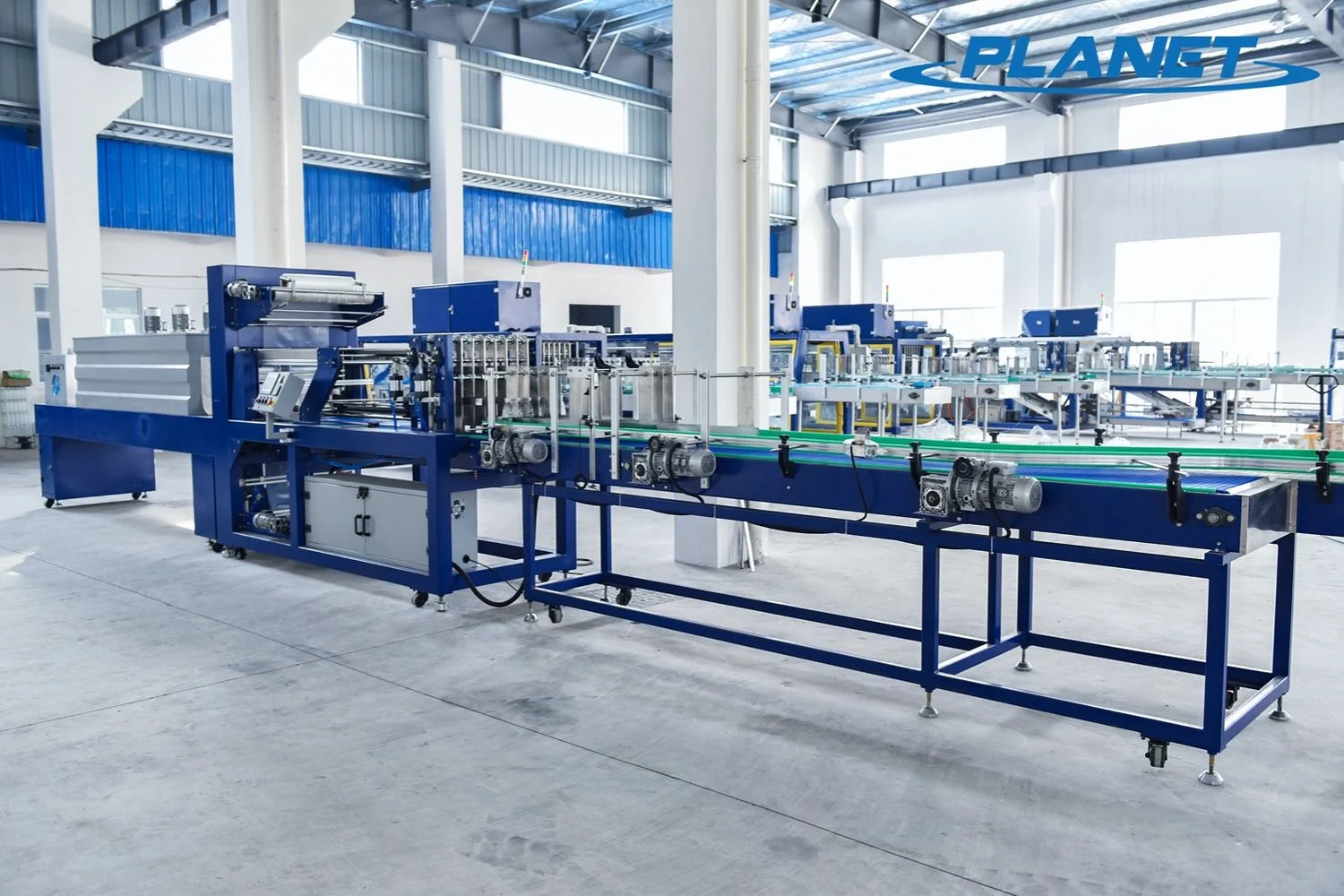

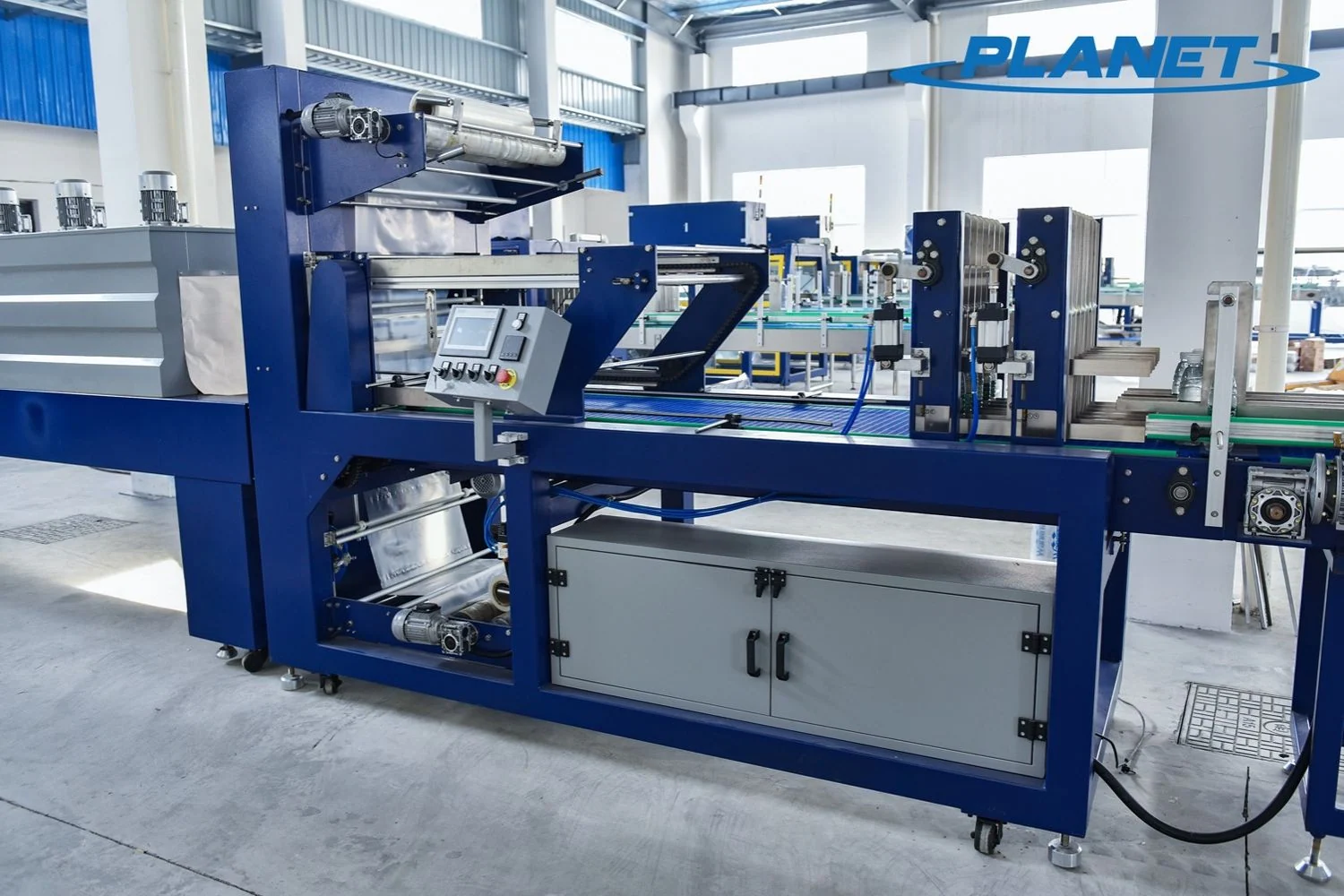

Linear Shrink-Wrapping Machine — full machine

Production footage

See the equipment in motion.

Review the production sequence and equipment details before discussing your own line.

Discuss your project

Published technical data

Compare the configuration.

Specifications are from the published product record. Confirm the selected model, output and utilities for your project.

Technical specifications

Model	PM-HW-20
Applicable Container	Plastic bottle, Glass bottle, Tins and Cans
Maximum package size	L450W450H350
Machine Dimension	L13800mmW1100mmH2100mm
Transfer Belt Width	550mm
Shrinkage temperature	130-260℃

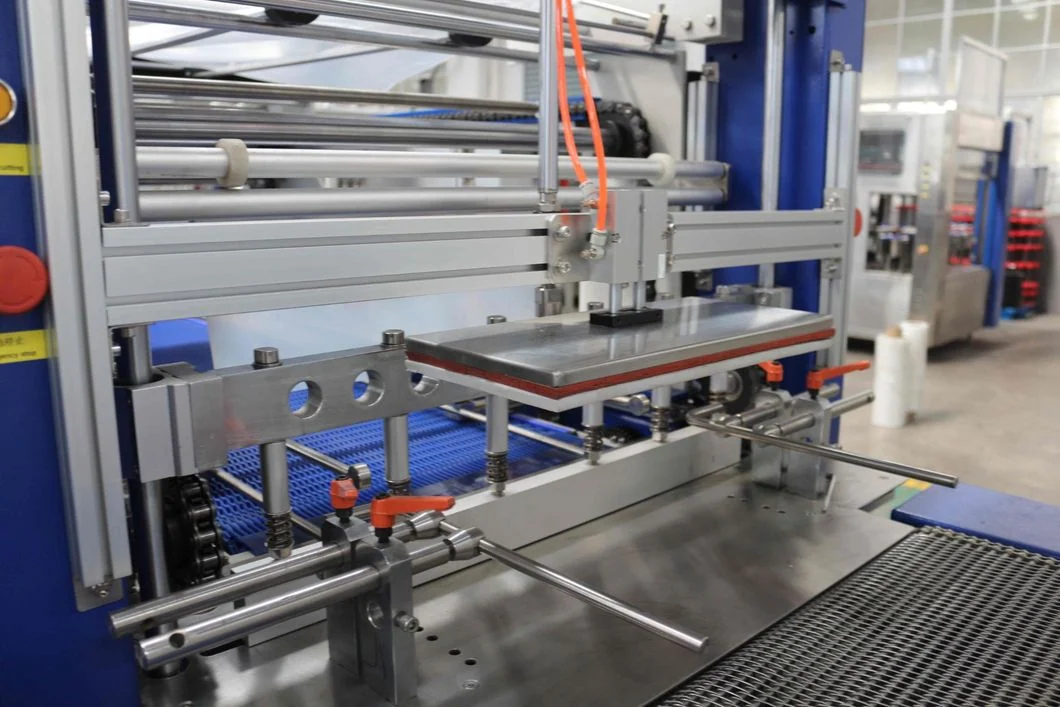

Sealing And Cutting Time	0.5-1s
Heat sealing and cutting temperature	180-260℃
Packaging Speed	15-20 pcs/minute
Operating Power Supply	3 phase 380V 24KW
Number of bottles per package (round or square)
4 columns 4 x 6 4 x5 applicable bottle size	4x4 Φ 40 - Ф 70 mm
3 columns 3 x 3 applicable bottle size	3 x4 Ф 70 - Ф 98 mm
2 columns 2 x 3 bottle diameter	2 x4 Ф 98 - Ф 140 mm
1 column 1 x 2 x 1 applicable bottle diameter	1 xФ140 - Ф300 mm

Package & product fit

Containers & handling.

Published container examples and process guidance for the selected machine.

Application notes

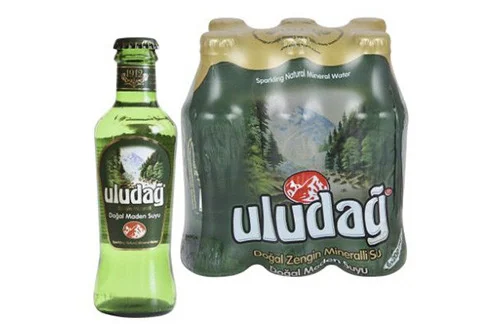

Glass bottles
Suitable : Beer, wine, brandy, vodeka
Bottle Type : Round / Square / Unique
Shrink film : PE, PP, PVC, POF etc..

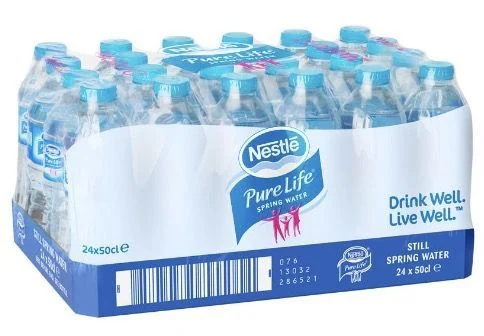

Plastic bottles
Suitable: Water, juice, soft drink etc..
Bottle Type : Round / Square / Unique.

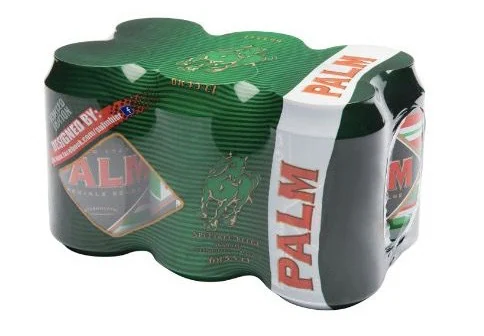

Tins & cans
Suitable : Daily chemical products.

Equipment details

Follow the machine through each stage.

Machine layout, component photographs and the corresponding process notes from the product record.

Product overview

Shrink Wrapping is a process that involves the application of temperature sensitive films. When heat is applied to the film it shrinks tightly to whatever it is covering. Shrink wrapping equipment is available for a variety of product sizes and in both automatic and semi-automatic formats. At PLANET MACHINE Packaging, we can help you find the right shrink wrap machines that are tailored to your operation's unique needs.

Full automatic shrink packaging machine can not only be solely used, but used simultaneously with other equipment to form packaging production line. It can automatically array, aggregate and align PET beverage bottle or other similar articles, then package it with shrinking film, finally produce finished products after shrinking by heating, cooling and forming. The packaged product is firmly bound with excellent appearance, which can be opened conveniently. Therefore, it is widely used in industries such as foodstuff, medicine, chemical and other light industrial products.

01 / MACHINE STAGE

Features of linear type shrink wrapping machine

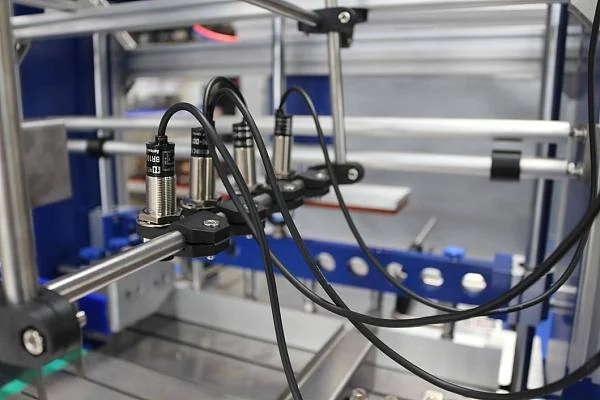

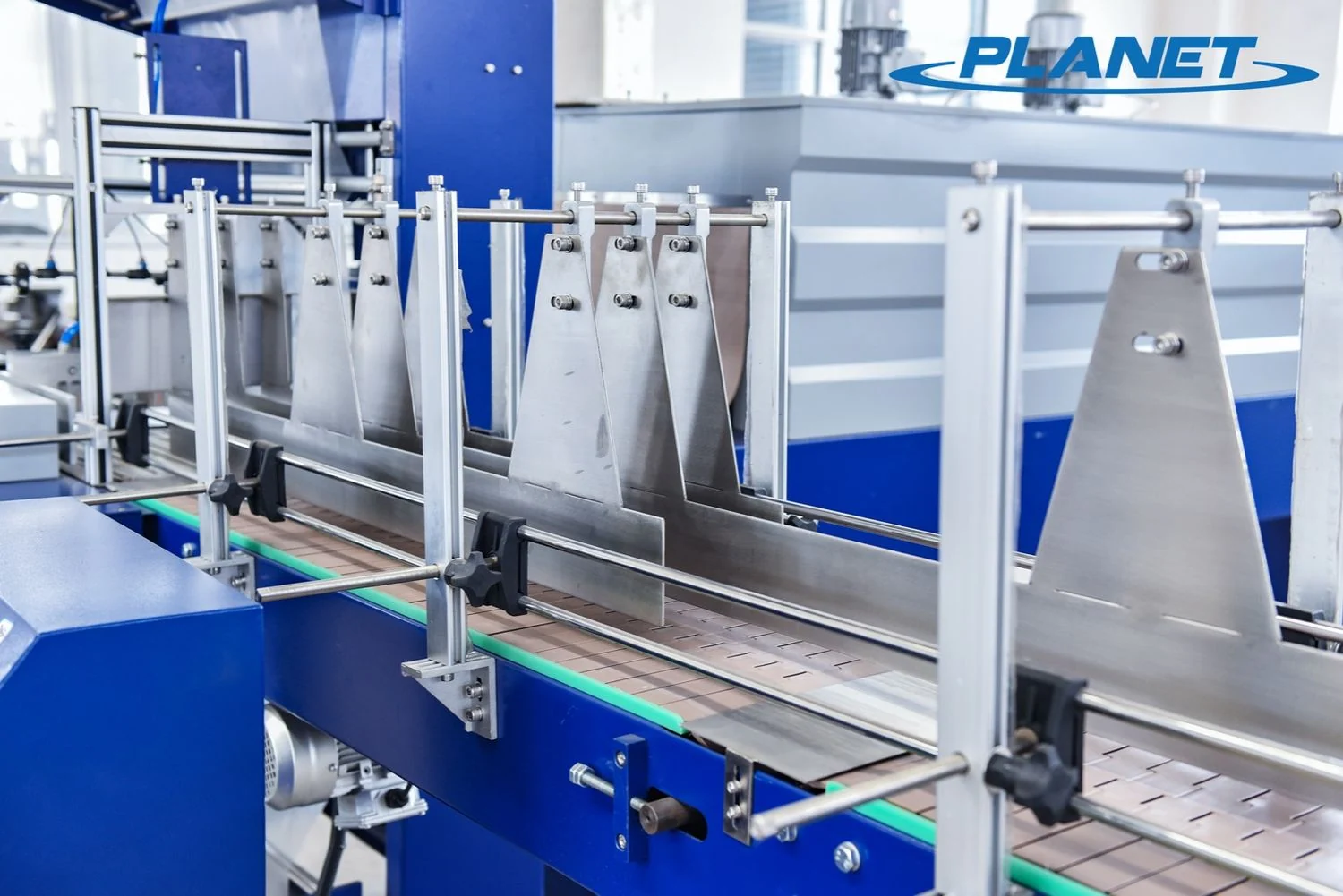

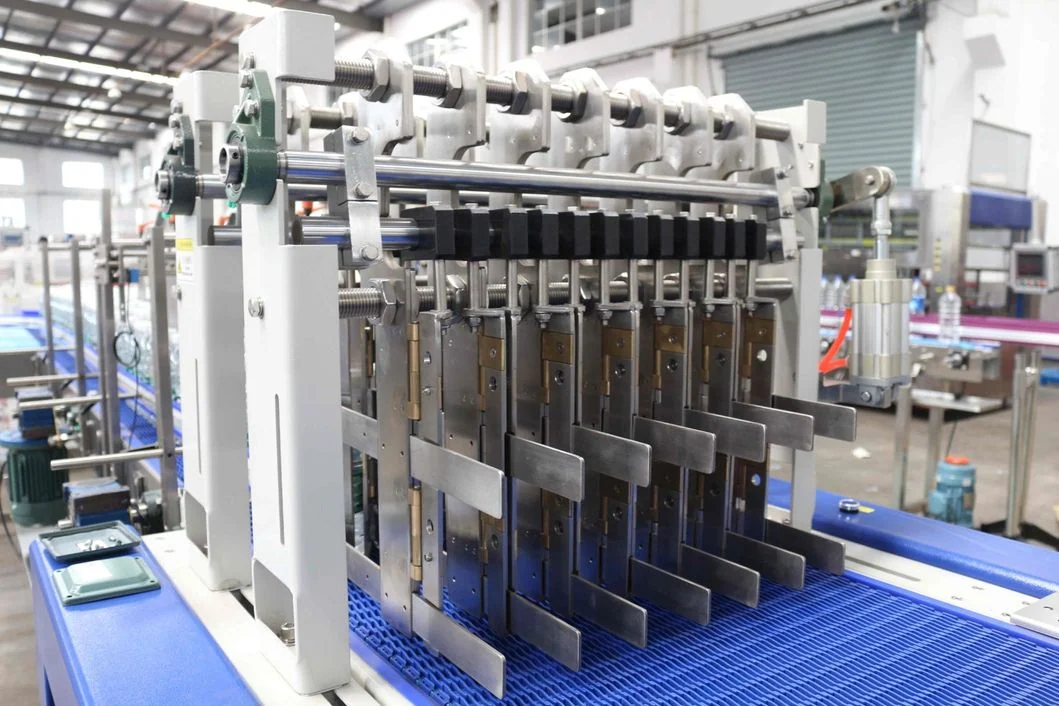

The appearance is simple and beautiful, the structure is novel and unique, and the maintenance is convenient. 2. Adopt pneumatic expansion to support the film roll, electronic induction film transport, stable film delivery, fast and convenient film change. 3. The whole machine is designed as a linear model with linear bottle feeding and packaging. The structure is mature and stable. It is an alternative to the vertical feeding film packaging model and is more suitable for packaging needs of a variety of bottle types. 4. Adopt pneumatic expansion to support the film roll, electronic induction film transport, stable film feeding, quick and quick film change.

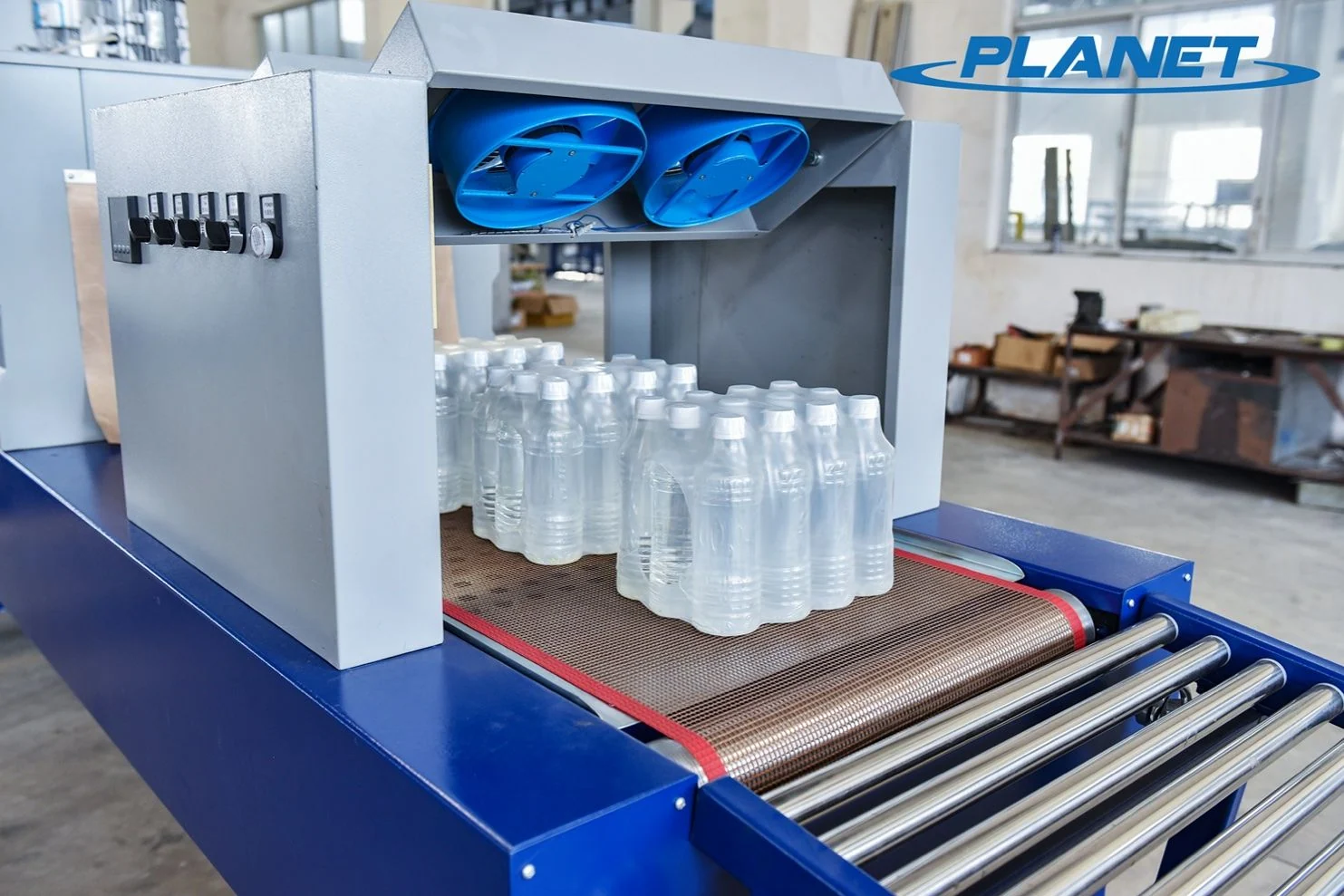

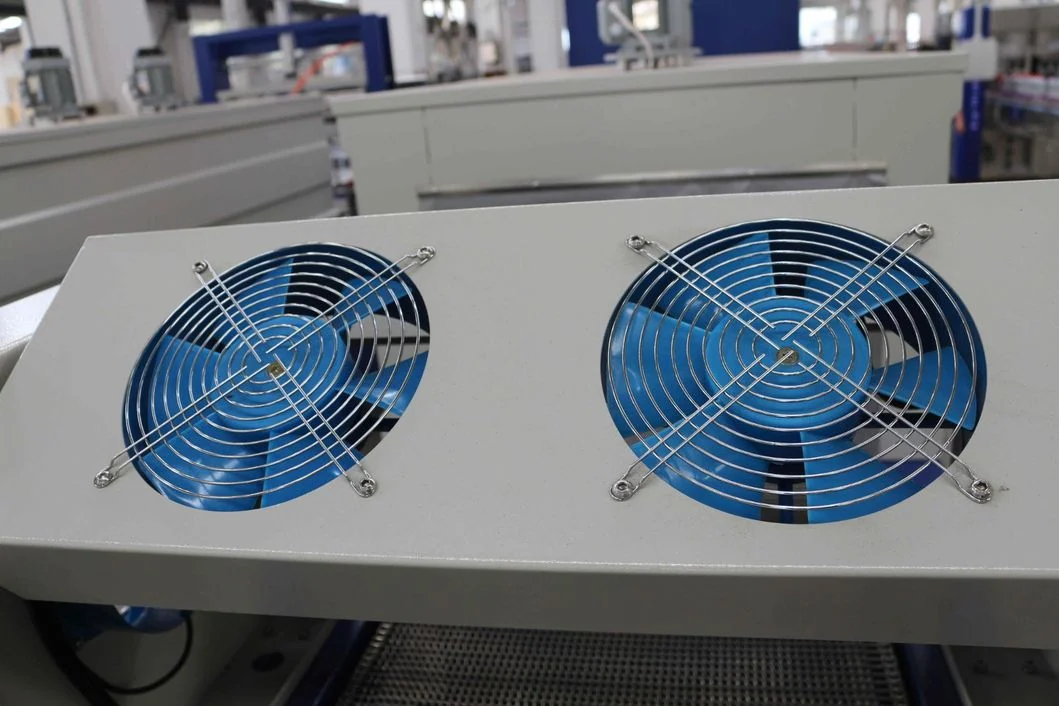

The heat shrinking and cooling integrated machine, the shrinking machine is equipped with independent cooling channels, which can quickly cool and shape the product surface after the film package, with better fastening force, which is beneficial to palletizing and handling 6. The shrinking chamber adopts unique circulating air supply technology to realize multi-directional air volume control technology, adjustable wind speed and adjustable air outlet position, which greatly improves the shrinking effect. 7. The equipment has a compact structure, a small footprint, and is easy to maintain. 8. Modules can be added to realize the color film function, which is a highly cost-effective single-piece wrap film shrink packaging machine.
