Glass Bottle Filling Machine

Glass-bottle filling and closing equipment configured around bottle handling, beverage condition and the selected closure.

Glass bottles
Water & beverages
Crown or screw closure

Compare specifications Request a proposal

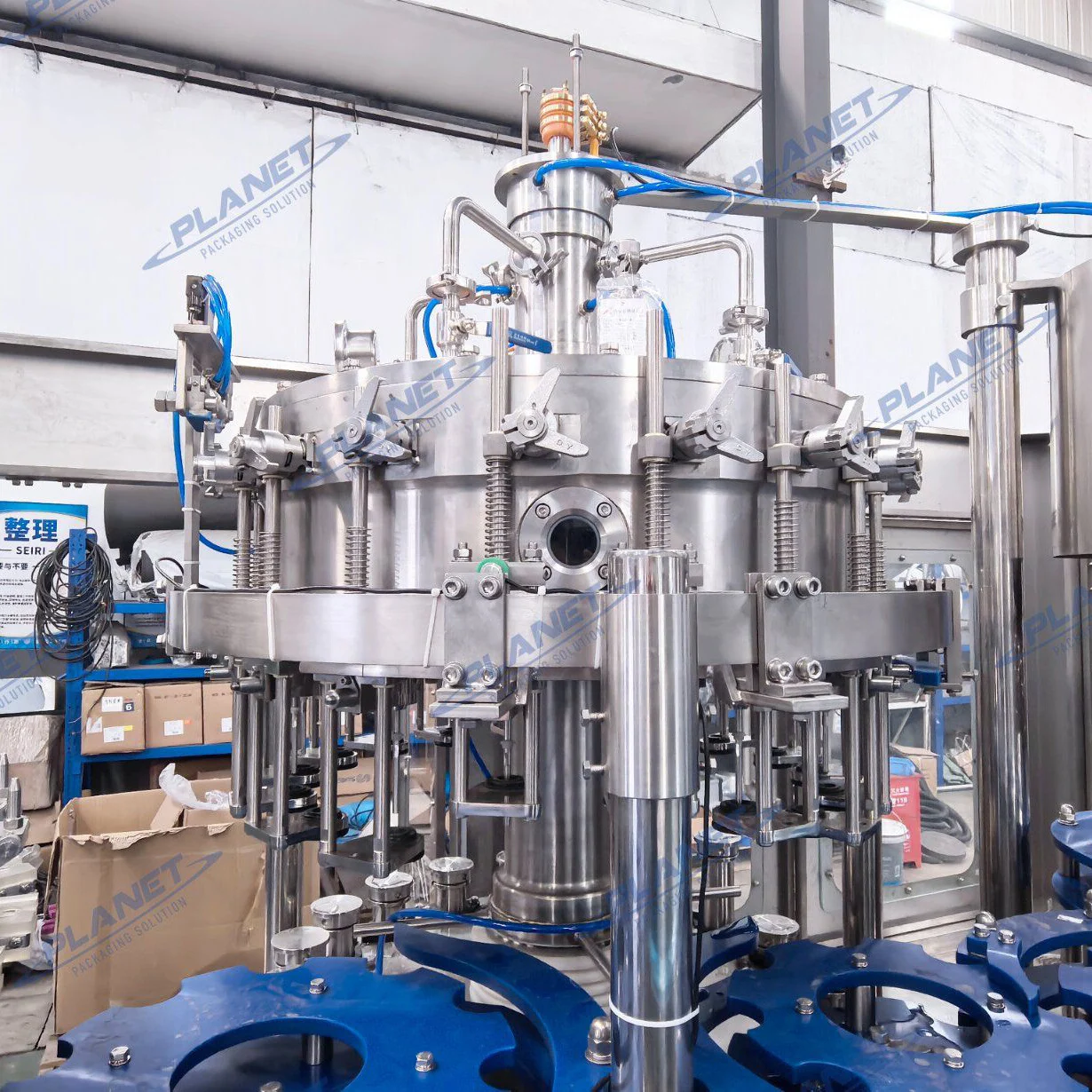

Glass Bottle Filling Machine — full machine

Production footage

See the equipment in motion.

Review the production sequence and equipment details before discussing your own line.

Discuss your project

Published technical data

Compare the configuration.

Specifications are from the published product record. Confirm the selected model, output and utilities for your project.

Technical specifications

Project Name:Full Automatic Complete beer 3000-36000bph Production Line				beer
Material	Shape	Filling volume	Filling level(mm)	Neck type
Glass bottle	Round bottle	200-1500ml	Distance from bottle neck According request	As request
Adjustable specifications of the can type	【Middle Mould Base】 can diameter s66mm can Heights165mm
Adjustable specifications of the can type	Customers need to buy additional change-over parts for the different cans.If using square bottles, then bottle separating system will be added.
Container Label & Control Mode		Packaging system		Palletizing system

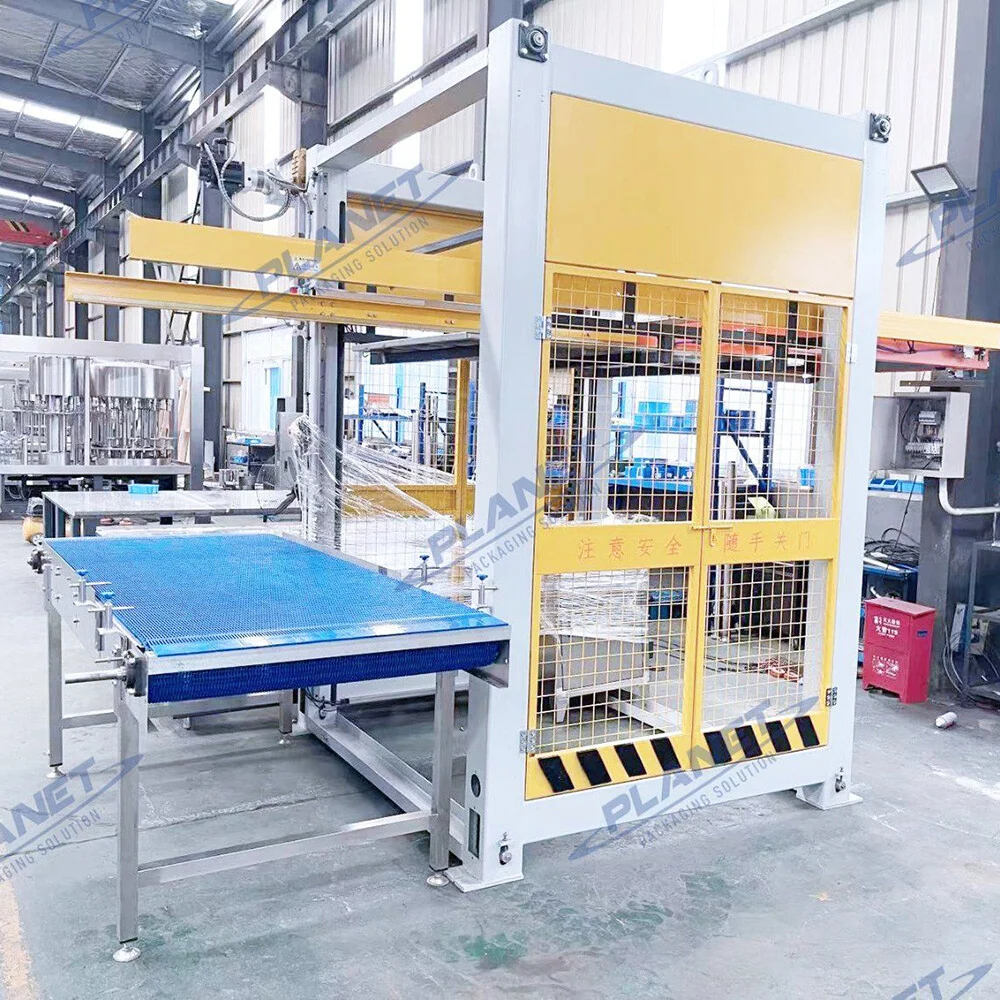

Cold glue label/adhesive labelFull Label/ Half LabelManual /Automaticc		Packing system	Min, Spec.	ManualLow position gantrypalletizerRobot PalletizerHigh position gantrypalletizerSingle ArmPalletizerManual Palletizer
		ManualFilm shrinkerWrap Around packercarton packRobert PackingMachine	122334463*5
User Ambient Conditions		Temperature:0~4°C;Humidity: No dew
User Electrical Supply Specification		Voltage:380V+5%,3phase;Frequency:50HZ+1%

Package & product fit

Containers & handling.

Published container examples and process guidance for the selected machine.

Application notes

Glass bottles
Water & beverages
Crown or screw closure

Equipment details

Follow the machine through each stage.

Machine layout, component photographs and the corresponding process notes from the product record.

Product overview

Beer Glass Filling Production line from A-Z

No matter what size of the line you want, you can always find porper machinery for your glass bottling line. Which means we provide various glass bottling production machine such as pre-mix equipment, bottle depalletizer, bottle rinsing-filling-capping machine, sterilization machine, labeling machine, spray cooling machine, packaging machine, conveying system, palletizing system etc.

01 / MACHINE STAGE

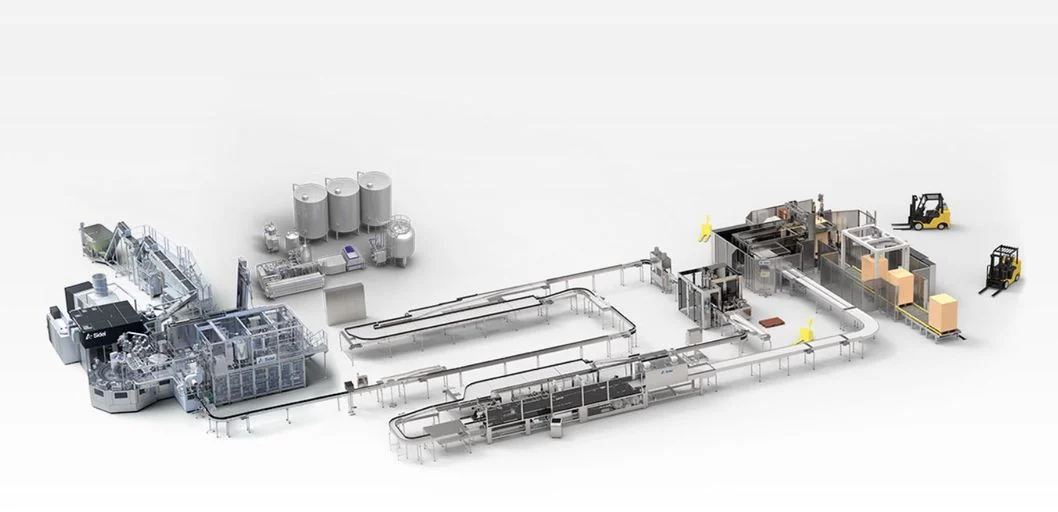

Machine Layout

Glass bottle depalletizer -->washing,filling and sealing 3 in 1-->pasteurization tunnel-->level checker-->Automatic cold glue labeling machine-->Automatic film shrink packing machine/Carton packing machine-->Conveyor system

02 / MACHINE STAGE

Washing Part

Safety and hygiene: Stainless steel 304/316L for all components. 2. Latest water-saving technology: Saving 30% water consumption. 3. Latest Machine Structure: Avoid a large amount of water accumulation inside the machine structure. 4. Strong and Durable. 5. The latest drainage design will not accumulate water.

03 / MACHINE STAGE

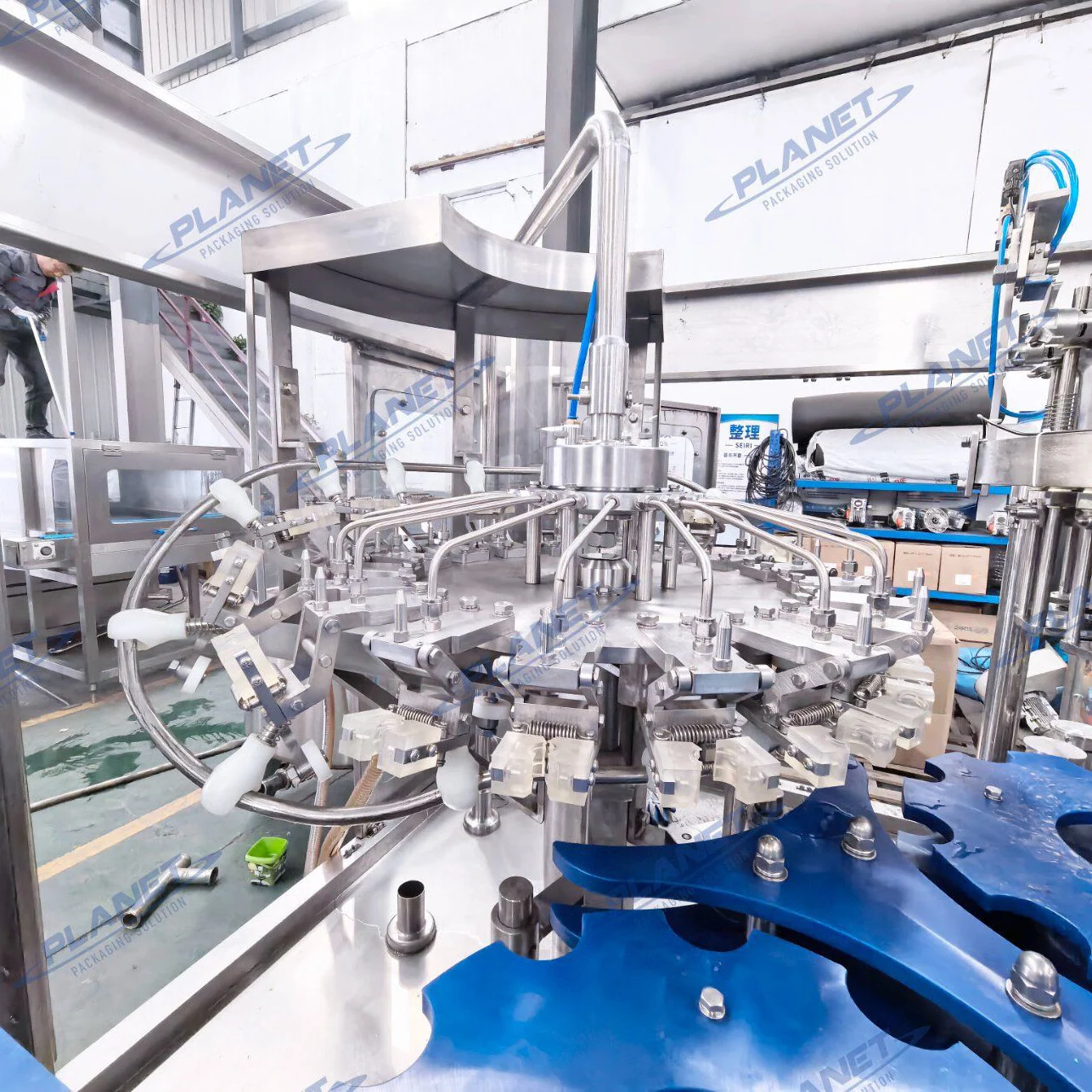

Filling Part

2 times vacuum, 2 times CO2 injection. 2. No bottle , no filling. 3. Stainless Steel 304/316 high precision filling nozzle. 4. Level height can be adjusted , bought from Nanjing , the best valve in China. 5. Efficient spray nozzle rinse throughly and save water for flushing. 6. The latest drainage design will not accumulate liquid.

04 / MACHINE STAGE

Capping Part

Automatic check,no bottle no capping. 2.Capping heads in stainless steel 304/316L. 3.Capping heads stop working when lack of bottle. 4.Fall guy guide sets out to prevent the cover through and cover on the body, at the same time equipped with a set of photoelectric switch, automatic stop when lighted cover rail without cover machine, can effectively avoid the occurrence of open bottle. 5.High efficiency centrifugal principle.
