Juice Filling Machine

Hot-fill rinse-fill-cap equipment for juice and tea, selected around recipe, fill temperature, bottle specification and target output.

Juice & tea
Hot fill
PET bottles

Compare specifications Request a proposal

Production footage

See the equipment in motion.

Review the production sequence and equipment details before discussing your own line.

Discuss your project

Published technical data

Compare the configuration.

Specifications are from the published product record. Confirm the selected model, output and utilities for your project.

Technical specifications

Model	washing heads	filling heads	capping heads	capacity	filling type	suitable bottle shape	total power	overall dimension(LWH)	Machine weight
RCGF14-12-5	14	12	5	2000-3000bph	Isobaric filling	diameter from θ50-96mm, bottle height from 165-310mm	3kw	236017702350mm	2500kg
RCGF18-18-6	18	18	6	4000-5000bph			3.5kw	273021502350mm	4800kg
RCGF24-24-8	24	24	8	6000-8000bph			5kw	280022502450mm	5900kg
RCGF32-32-8	32	32	8	9000-12000bph			5kw	421529602450mm	6900kg
RCGF40-40-10	40	40	10	12000-15000bph			9kw	436033002450mm	10000kg
RCGF50-50-12	50	50	15	16000-18000bph			9kw	590033002450mm	15500kg
RCGF60-60-15	60	60	15	19000-21000bph			13kw	610048152550mm	18500kg
RCGF72-72-18	72	72	18	26000-28000bph			18kw	654049002550mm	25500kg

Additional product data

Project Name:Full Automatic Complete Juice 2000-36000bph Production Line				PH≥4.6Juice
Material	Shape	Filling volume	Filling level(mm)	Neck type
PET Bottle	Square or Round Bottle	100-2000ml	Distance from bottle neckAccording request	As request
Adjustable specificationsof the bottle type	Middle Mould BaseBottle diameter ≤105mm Bottle Height≤335mm
Adjustable specificationsof the bottle type	Customers need to buy additional change-over parts for the different bottles.If using square bottles, then bottle separating system will be added.
Container Label & Control Mode		Packaging system		Palletizing system
Hot Melt Roll-FedPVC Shrink LabelFull Label/ Half LabelManual / Automaticc		Packing system	Min, Spec.	ManualLow position gantry palletizerRobot PalletizerHigh position gantry palletizerSingle Arm PalletizerManual Palletizer
		ManualFilm shrinkerWrap Around packerRobert Packing Machine	122334463*5
User Ambient Conditions		Temperature:10~40ºC;Humidity:No dew
User Electrical Supply Specification		Voltage:380V±5%, 3phase; Frequency:50HZ±1%

Operating requirements

Bottle Material	PET
Bottle Shape	Square,round or customized shape
Bottie Diameter	50-105mm
Bottle Height	160-335mm
Filling Volume	100m1-2000ml

Package & product fit

Containers & handling.

Published container examples and process guidance for the selected machine.

Application notes

Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, thisenable the change the bottle-shaped become easier.
Bottles fransmissian adopt clip bottleneck fechnology, bottle-shaped transform not need to adjust the equipment level onlychange related the curved plate, wheel and nylon parts is enough.
The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
High-speed large gravity flow valve filling valve, filling fast, filing accurate and no liquid lose.
Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains6. Host adopt advanced PlC autamatic control technclogy, the key electrical components from famous company such as japan's.

Equipment details

Follow the machine through each stage.

Machine layout, component photographs and the corresponding process notes from the product record.

Product overview

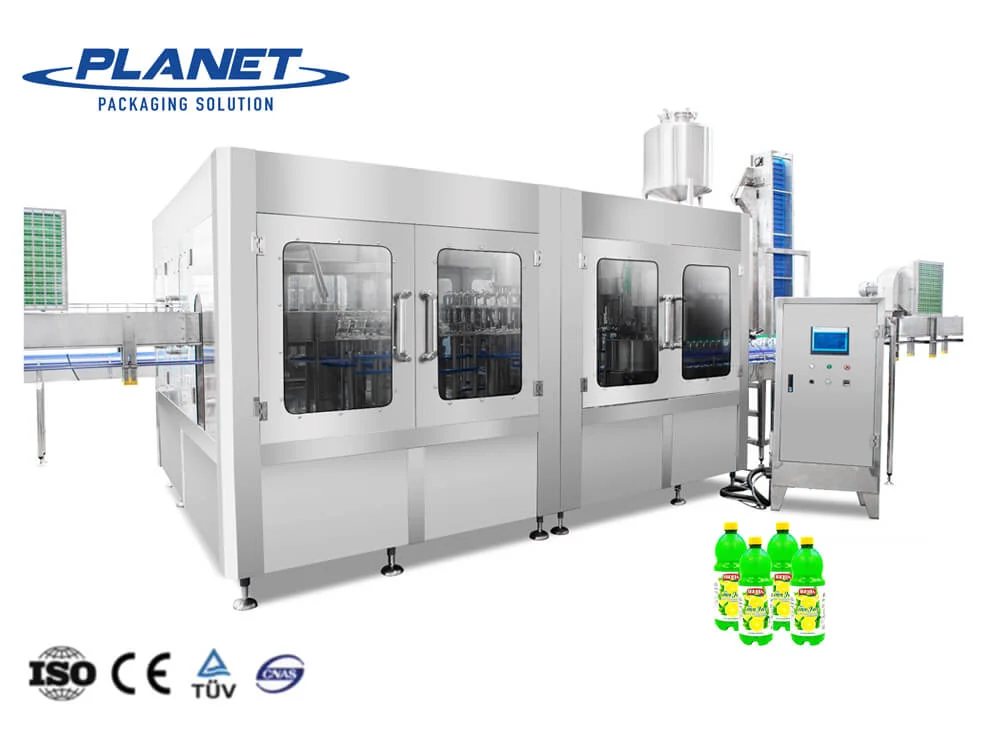

The automatic juice&tea hot filling machine integrated machine is a new product developed by Planet Machinery after introducing internationally advanced technology to meet market demand. The juice filling equipment adopts automatic washing-filling-capping, suitable for 350-1500ml small bottle juice production line. The juice filler can fill a variety of juices such as orange juice,strawberry juice, blueberry juice, and mango juice.

Planet Machinery is a professional manufacturer of fruit juice filling machine, which can be customized according to the specific requirements of customers.

01 / MACHINE STAGE

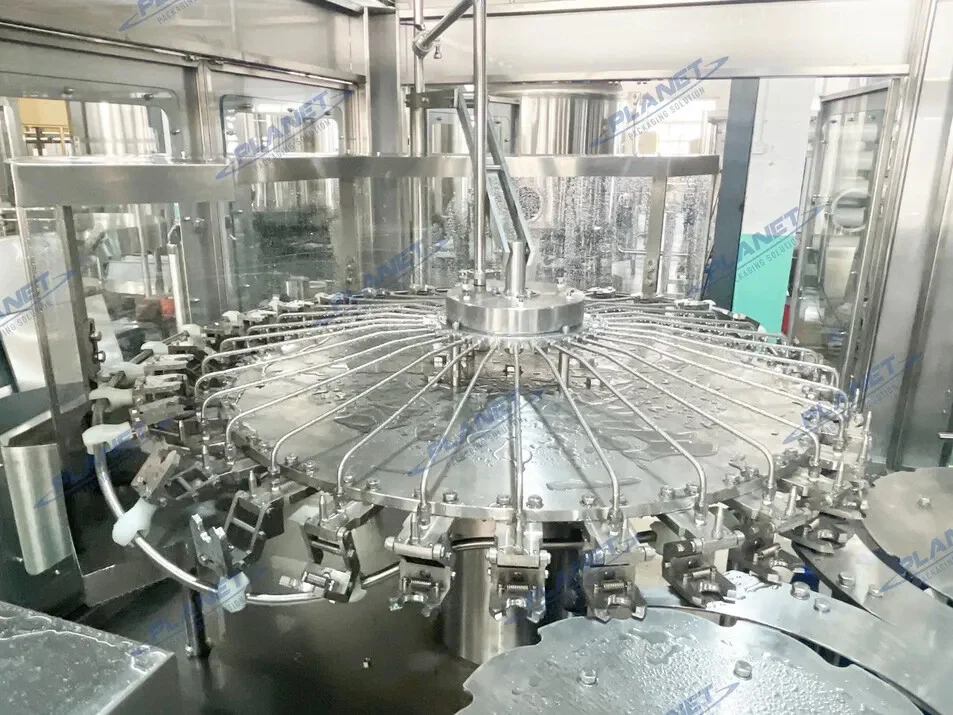

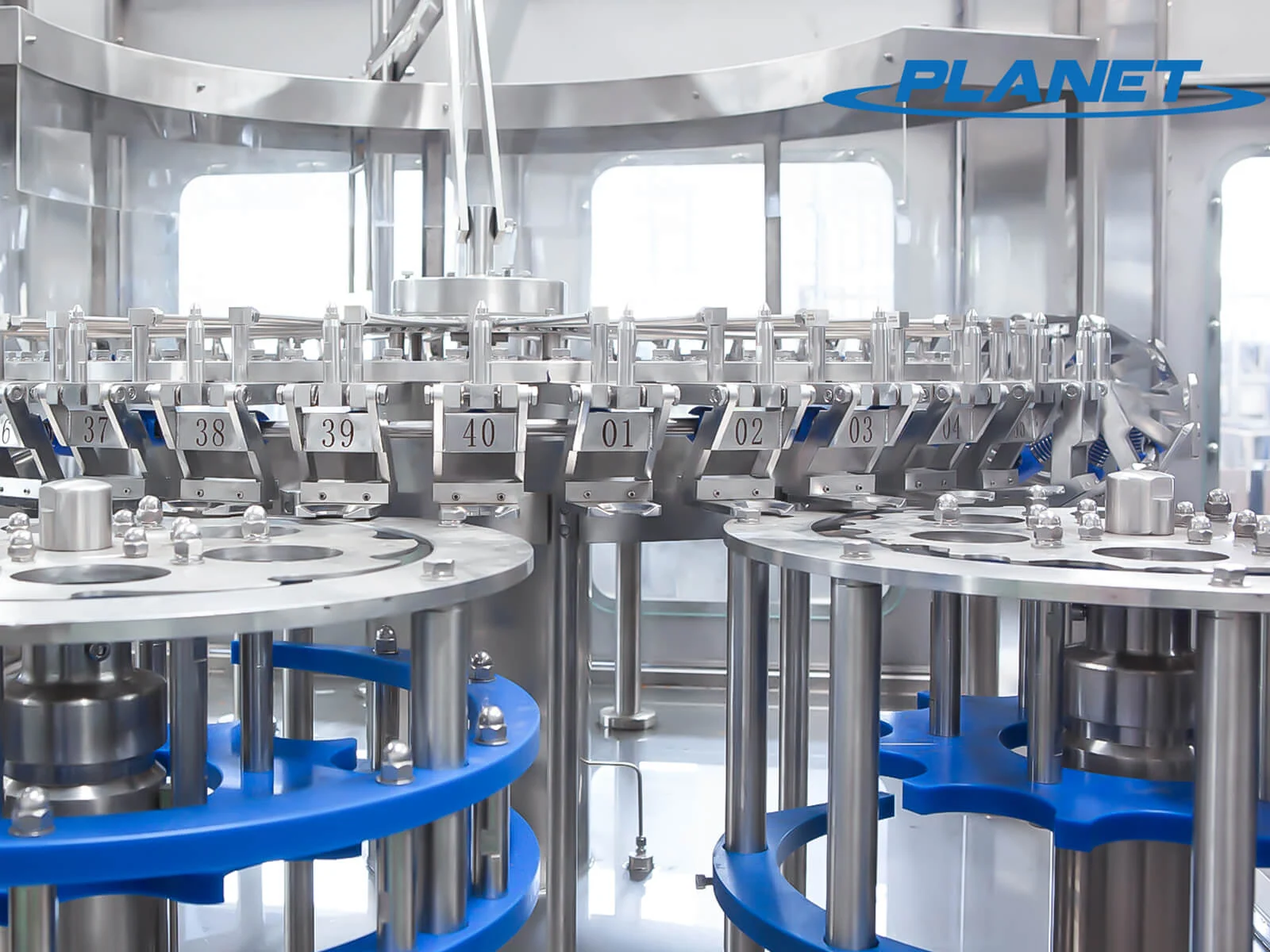

Bottle Washing

Into bottle way is air conveyor direct connection with bottle dial. - All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean. - 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing. - 304/316 stainless steel washing pump make the machine more durable.

02 / MACHINE STAGE

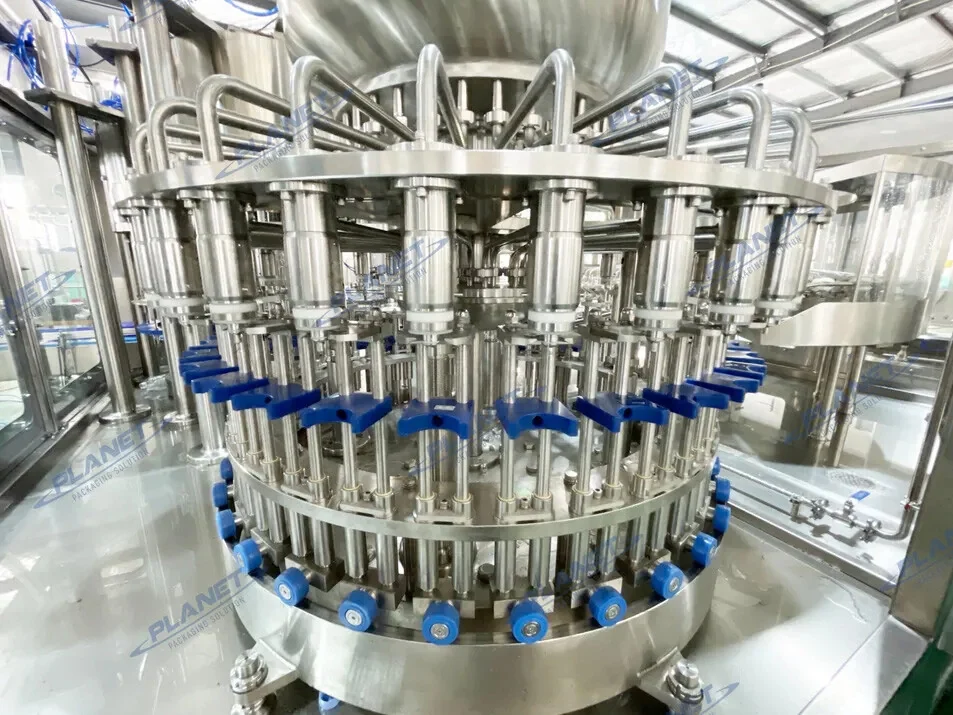

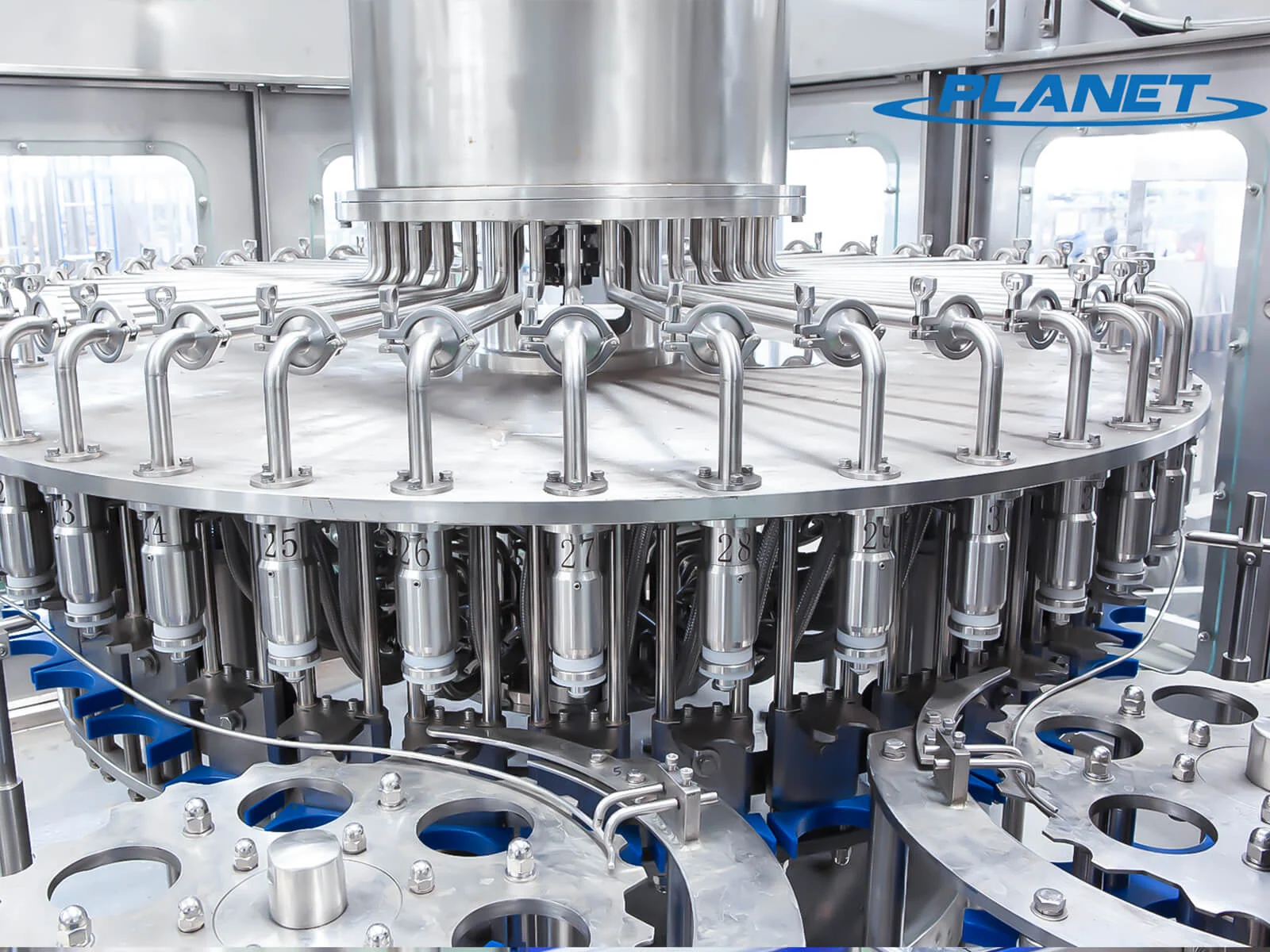

Juice filling heads

During filling juice ,we will make a cover installaed on the filling valve, avoiding the fruit pulp return inside reflux pipe to block the pipe. -Filling valve and bottle lifter uses adopts German Igus bearings which are corrosion-resistant and maintenance-free. -By install CIP cleaning cups, the filling machine can realize online CIP cleaning -During filling process, there is no reflux of product, avoiding blockage of product.

03 / MACHINE STAGE

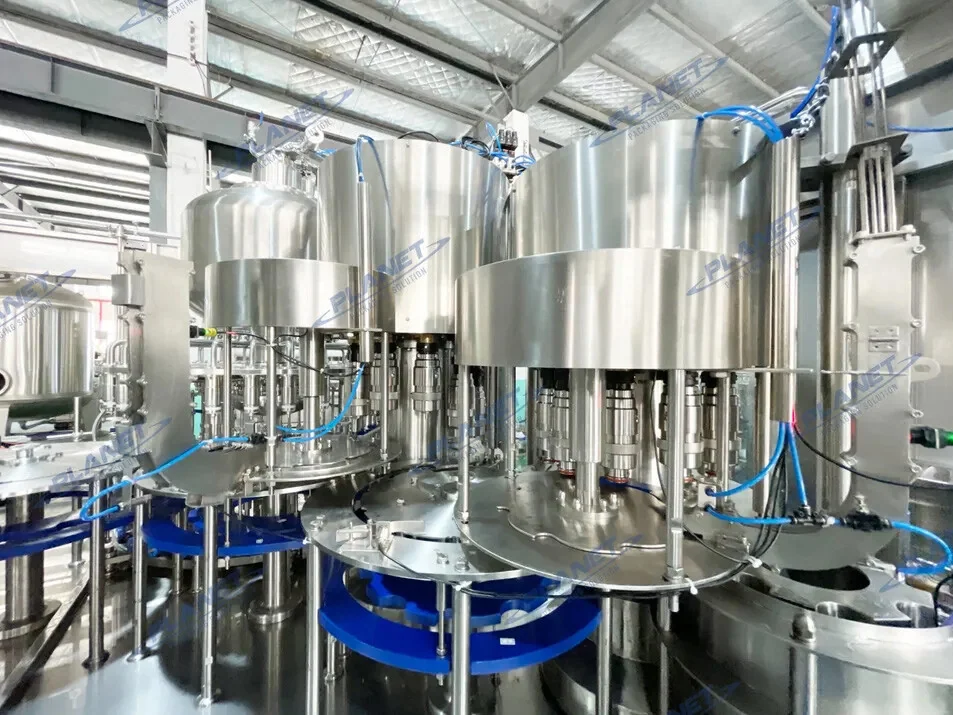

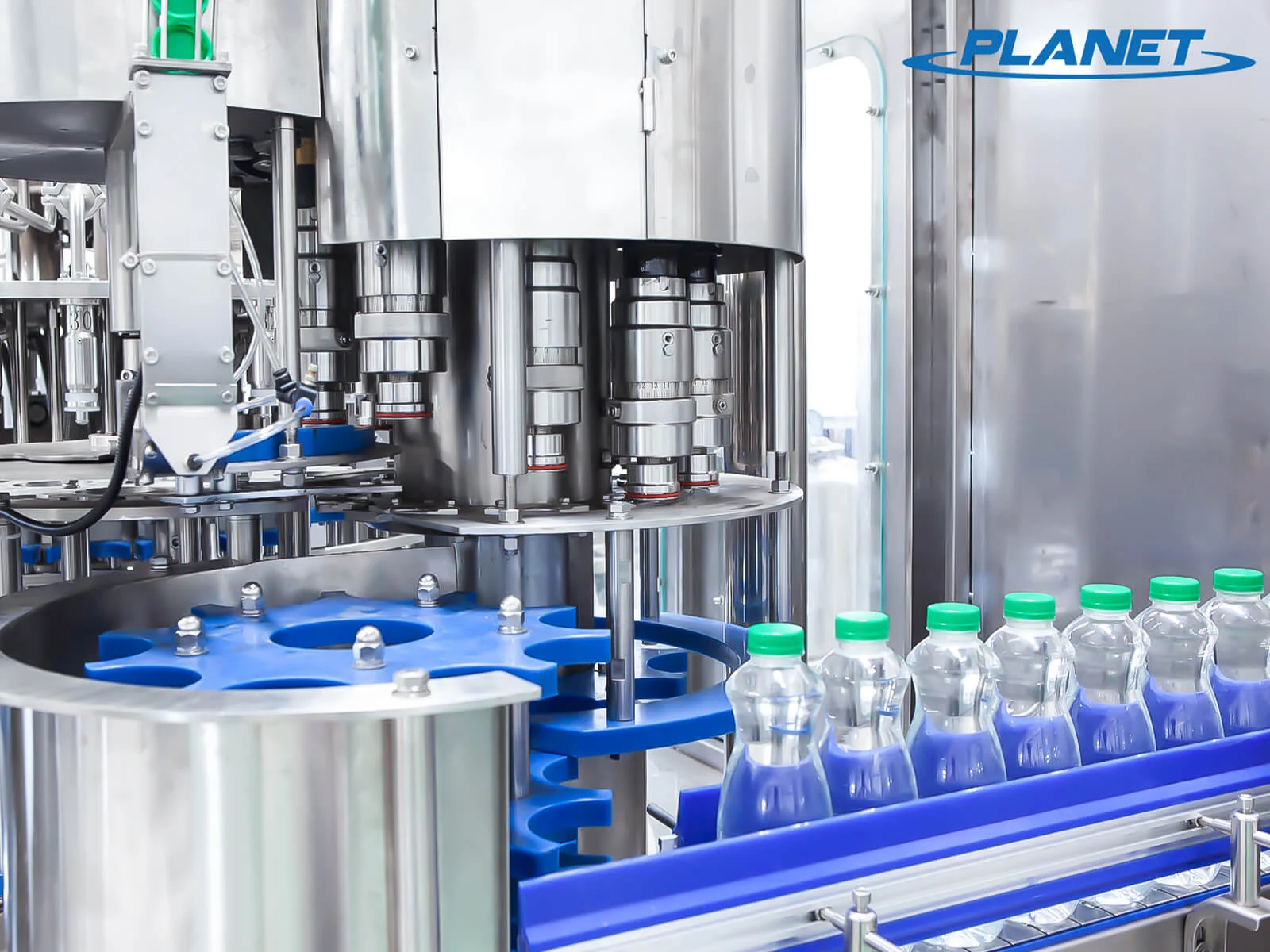

Bottle Capping

Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during c apping- All 304/316 stainless steel construction - No bottle no capping - Automatic stop when lack of bottle - Capping effect is stable and reliable, Defective rate ≤0.2%
